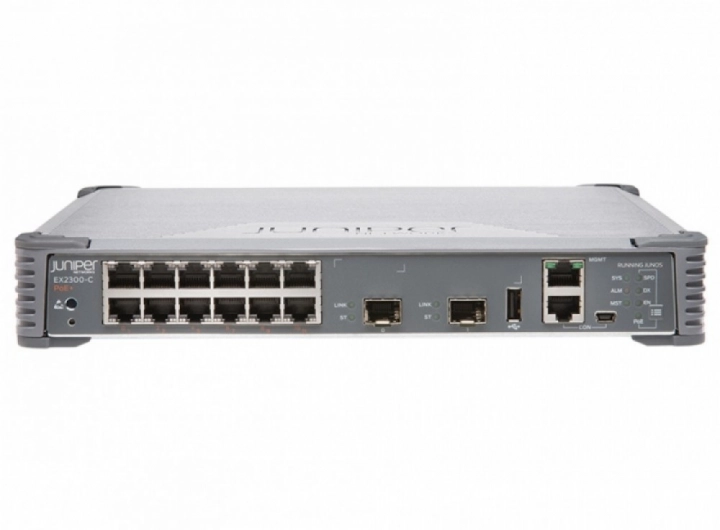

Switch Juniper EX2300-C-12P-TAA : TAA Compact Fanless 12-port

10/100/1000BASE-T PoE+, 2 x 1/10GbE SFP/SFP+ (optics sold separately).

Description

Model	EX2300-C-12P-TAA
Switching Engine Model	• Store and forward
DRAM	• 2 GB with ECC
Flash	• 2 GB
CPU	• 1.25 GHz ARM CPU
GbE port density per system	• 14 (12 access ports + 2 uplink ports)
Packet-Switching Capacities (Maximum with 64-Byte Packets)	• 32 Gbps (unidirectional)/64 Gbps (bidirectional)
Layer 2/Layer 3 Throughput (Mpps) (Maximum with 64 Byte Packets)	• 47 Mpps (wire speed)
Layer 2 Features	• Maximum MAC addresses in hardware: 16,000 • Jumbo frames: 9216 bytes • Number of VLANs supported: 4093 (2044 active VLAN) • Range of possible VLAN IDs: 1-4094 • Port-based VLAN • MAC-based VLAN • Voice VLAN
Layer 3 Features: IPv4	• Maximum number of ARP entries: 1,500 • Maximum number of IPv4 unicast routes in hardware: 512 prefixes; 4,096 host routes • Maximum number of IPv4 multicast routes in hardware: 2,048 groups; 2,048 multicast routes
Layer 3 Features: IPv6	• Maximum number of Neighbor Discovery (ND) entries: 1,500 • Maximum number of IPv6 unicast routes in hardware: 512 prefixes; 2,048 host routes • Maximum number of IPv6 multicast routes in hardware: 1,024 groups; 1,024 multicast routes
Dimensions (W x H x D)	• 10.98 x 1.72 x 9.4 in (27.9 x 4.4 x 23.9 cm)
Backplane	• 40 Gbps Virtual Chassis interconnect to link up to four switches as a single logical device
System Weight	• 6.99 lb (3.17 kg)
Environmental Ranges	• Operating temperature: 32° to 104° F (0° to 40° C)1, 2 • Storage temperature: -40° to 158° F (-40° to 70° C) • Operating altitude: up to 5,000 ft (1524 m) • Nonoperating altitude: up to 16,000 ft (4877 m) • Relative humidity operating: 10% to 85% (noncondensing) • Relative humidity nonoperating: 0% to 95% (noncondensing)
