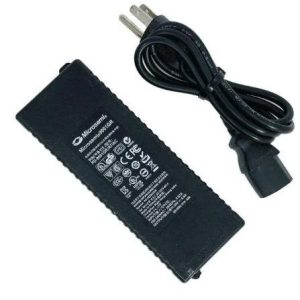

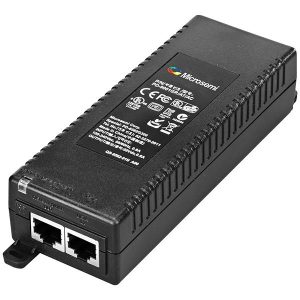

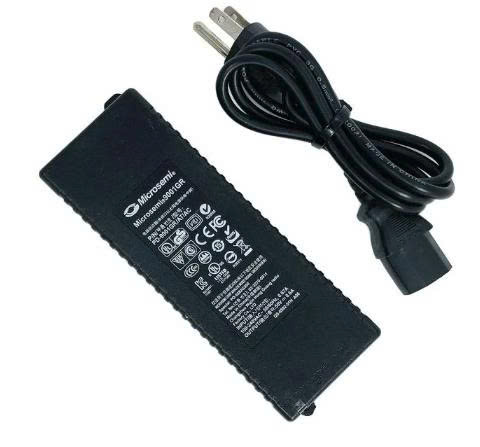

Nguồn Microsemi PD-9001GR/AT/AC nguồn POE 55V-0,6A chuẩn AT

Specifications
Feature Description
No. of Ports 1
Data Rates 10/100/1000 Mbps
Power over
Ethernet Output
Pin Assignment and Polarity:
Spare Pairs 7/8 (-) and 4/5 (+)
Output Power Voltage: 55 VDC
User Port Power: 30W (Guaranteed)
Input Power
Requirements
AC Input Voltage: 100 to 240Vac (±10%)
AC Input Current: 0.67A @ 100-240Vac
AC Frequency: 50 to 60Hz
Dimensions 51.8mm (W) x 34.8mm (H) x 160.5mm (L) ±0.5mm
2.04 in. x 1.37 in. x 6.31 in ±0.02 in
Weight .44 lbs (200g)
Indicators User Indicator:
Channel Power (Green)
Connectors Shielded RJ-45, EIA 568A and 568B
Environmental
Conditions
Operating Ambient Temperature:
Conditions
-4ºF to 104ºF (-20 ºC to 40ºC) @30W
-4ºF to 131ºF (-20 ºC to 55ºC) @22.5W
Environmental
Conditions
Reliability
Operating Humidity:
Maximum 90%, Non-condensing
Storage Temperature:
-4º to 158ºF (-20º to 70ºC)
Storage Humidity:
Maximum 95%, Non-condensing
Operating Altitude:
–1000 to 10,000 ft. (–304.8 to 3048 m)
MTBF: 100,000 hrs. @ 25ºC
Thermal Rating 20 BTU/Hr (@240VAC)
Warranty 1-year
Regulatory
Compliance
IEEE 802.3af (PoE), RoHS Compliant,
WEEE Compliant, CE
Electromagnetic
Emission
& Immunity
FCC Part 15, Class B
EN 55032 Class B (Emissions)
EN 55024 (Immunity)
VCCI
Safety UL/EN/IEC 60950-1 (Ed.2)
