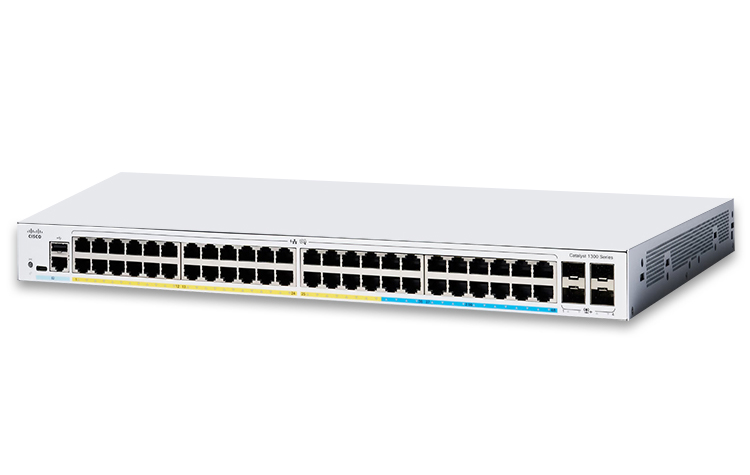

Switch Cisco C1300-48P-4G

Liên hệ

  • Cổng Lan: 48x 10/100/1000 PoE+ ports with 370W power budget
  •  Cổng Uplink:  4x Gigabit SFP
  • Kiểu Switch: Switch Layer 3 Managed, Rack-mount
  •  Tốc độ chuyển mạch: 104 Gbps
  •  Tốc độ chuyển tiếp gói tin: 77.38 mpps
Specifications
Port 48 x 1G Ethernet ports
4 x 1G SFP Uplink ports
Console port Cisco standard RJ-45 console port and USB Type C port
USB port USB Type C port on the front panel of the switch for easy file and image management as well as console port
PoE 375W
Performance
Switching capacity in Gigabits per second (Gbps) 104 Gbps
Capacity in Millions of Packets Per Second (mpps) (64-byte packets) 77.38 Mpps
Hardware
CPU ARM dual-core at 1.4 GHz
DRAM 1 GB DDR4
Flash 512 MB
Packet buffer 3 MB
Buttons Reset button
Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs System, Link/Act, PoE, Speed
Feature
Spanning Tree Protocol Standard 802.1d Spanning Tree support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported
Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported
Port grouping/link aggregation Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
● Up to 8 groups
● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN Support for up to 4093 VLANs simultaneously
Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN
Management VLAN
Private VLAN with promiscuous, isolated, and community port
Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
Guest VLAN, unauthenticated VLAN
Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication
Customer premises equipment (CPE) VLAN
Auto surveillance VLAN (ASV)
Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices
Multicast TV VLAN Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR)
IPv4 routing Wire-speed routing of IPv4 packets
Up to 990 static routes and up to 128 IP interfaces
IPv6 routing Wire-speed routing of IPv6 packets
Layer 3 interface Configuration of a Layer 3 interface on a physical port, LAG, VLAN interface, or loopback interface
Routing Information Protocol (RIP) v2 Support for RIP v2 for dynamic routing
Policy-Based Routing (PBR) Flexible routing control to direct packets to a different next hop based on an IPv4 or IPv6 Access Control List (ACL)
DHCP server Switch functions as an IPv4 DHCP server, serving IP addresses for multiple DHCP pools or scopes
Support for DHCP options
Environmental
Unit dimensions (W x H x D) 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
Unit weight 5.43 kg (11.97 lb)
Power 100-240V 50-60 Hz
Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature 23° to 122°F (-5° to 50°C)
Storage temperature -13° to 158°F (-25° to 70°C)
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 10% to 90%, relative, noncondensing
Fan (number) 1
MTBF at 25°C (hours) 856,329
