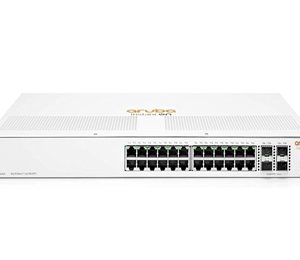

JL683A Aruba 24G Class4 PoE 4SFP/SFP+ 195W Switch

13,500,000 ₫

Aruba JL683A Instant On 1930 24 ports RJ-45 autosensing 10/100/1000 Class 4 PoE 195W, 4 SFP/SFP+ Uplink Switch chính hãng giá tốt.

✓ Mã sản phẩm: JL683A
✓ Tình trạng: Còn Hàng

Aruba JL683A 24G Class4 PoE 4SFP/SFP+ 195W Switch

Aruba Part Number
: JL683A
List Price
: $469
Giá bán
: Giá rẻ nhất thị trường
Bảo hành
: Trọn đời
Made In
: Liên hệ
Stock
: Sẵn hàng

Thông số kỹ thuật Aruba JL683A

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch (JL683A)
I/O Ports and Slots – 24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
– 4 SFP+ 1/10GbE ports
Physical characteristics
Dimensions 17.42(w) x 10.42(d) x 1.73(h) in (44.25 x 26.47 x 4.39 cm) (1U height)
Weight 7.71 lb (3.50 kg)
Hardware
CPU ARM Cortex-A9 @ 800 MHz
Memory 512 MB SDRAM
Flash 256 MB flash
Packet buffer 1.5 MB
Performance
Switching capacity 128 Gbps
Throughput capacity 95.23 Mpps
Environment
Operating temperature 32°F to 104°F (0°C to 40°C)
Operating relative humidity 15% to 95% @ 104°F (40°C)
Non-operating temperature ‑40°F to 158°F (‑40°C to 70°C)
Non-operating relative humidity 15% to 95% @ 140°F (60°C)
Max operating altitude Up to 10,000ft (3.048 Km)
Acoustics – Pressure: 46.1 dBA
– Power: 60.5 dB
Electrical characteristics
Frequency 50Hz/60Hz
AC voltage 100 – 127 / 200 – 240 VAC
Current 2.6/1.3 A
Maximum power rating 234.0 W
Idle power 19.3 W
PoE power 195 W Class 4 PoE
Safety UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
