| Product code | CCR2216-1G-12XS-2XQ |
|---|---|
| Specifications | |
| CPU | AL73400 2 GHz |
| CPU architecture | ARM 64bit |
| CPU core count | 16 |
| Size of RAM | 16 GB |
| RAM type | DDR4 |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 1 |
| Number of 25G SFP28 ports | 12 |
| Number of 100G QSFP28 ports | 2 |
| Number of M.2 slots | 2 |
| Operating system | RouterOS (License level 6) |
| Switch chip model | 98DX8525 |
| Switch connection to CPU | 4×25 Gbps |
| Dimensions | 443 x 367 x 44 mm |
| Operating temparature | -20°C to +60°C |
| Powering | |
| Number of AC inputs | 2 |
| AC input range | 100-240 V |
| Power adapter nominal voltage | 12 V |
| Power adapter nominal current | 12.5 A |
| Max power consumption without attachments | 80 W |
| Max power consumption | 121 W |
| Cooling type | 4 fans |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 20 |

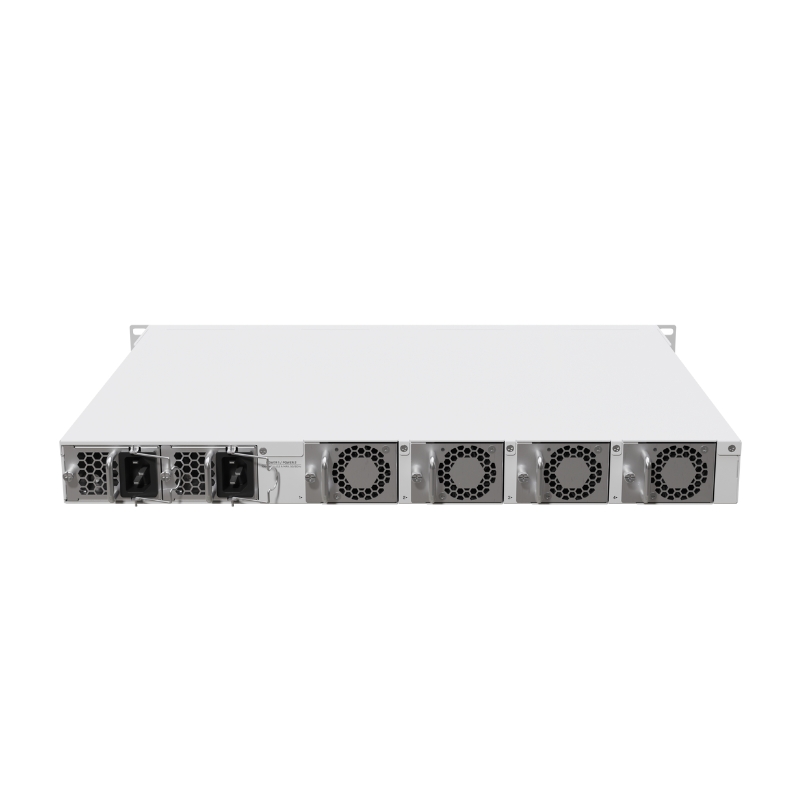

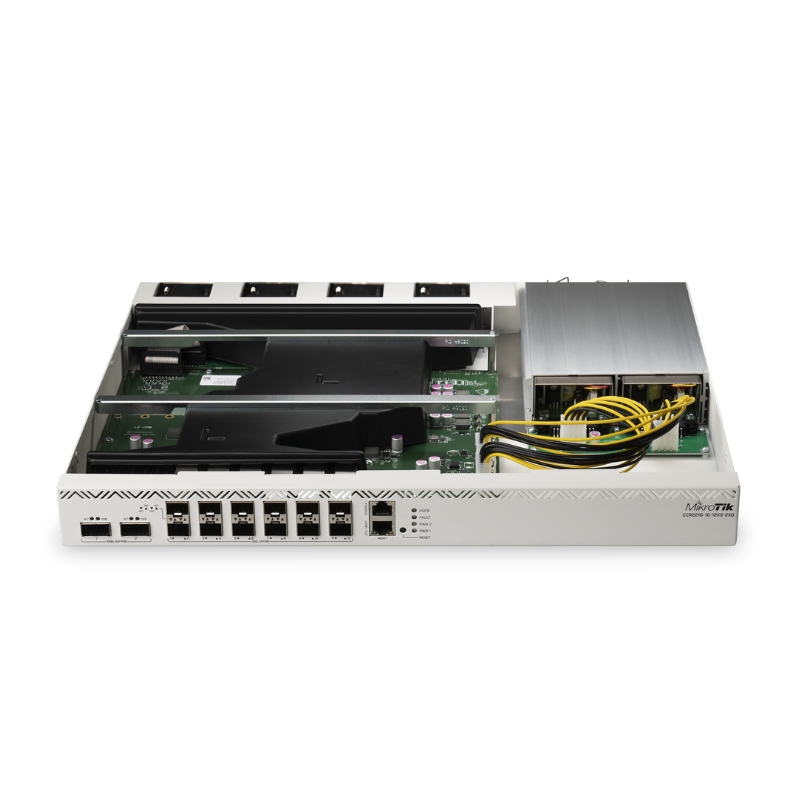

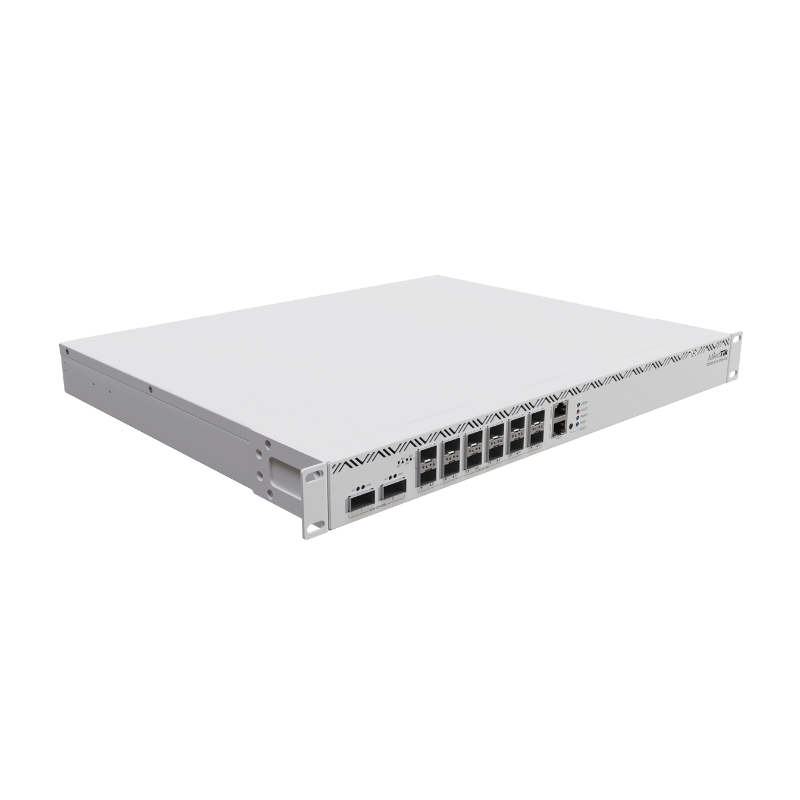

MikroTik, Thiết bị cân bằng tải Router | CCR2216-1G-12XS-2XQ
Liên hệ
2x 100G QSFP28 ports | 12x 25G SFP28 ports | 1x Gigabit LAN port | 1x RJ45 Serial port | 2x M.2 slots | 16 core CPU | 16 GB RAM | Dual redundant power supply | RouterOS L6
Hãng : Mikrotik
Xuất xứ: Latvia
