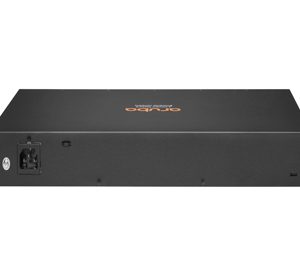

Switch Aruba R8N85A 48xGE JR45, 4xSFP, 48 Ports PoE 370W
| Aruba Part Number |
: R8N85A
|
| List Price |
: 3,199
|
| Giá bán |
: Giá rẻ nhất thị trường
|
| Bảo hành |
: Trọn đời
|
| Made In |
: Liên hệ
|
| Stock |
: Sẵn hàng
|
Thông số kỹ thuật Switch Aruba R8N85A
| Datasheet | R8N85A |
| SPECIFICATIONS | |
| Description | – 48x ports 10/100/1000BASE-T Ports Supports PoE Standards IEEE 802.3af, 802.3at
– 4x 1G SFP ports – 1x USB-C Console Port – 1x USB Type-A Host port |
| Power supplies | Fixed power supply
Up to 370W of Class 4 PoE Power |
| Fans | Fixed fans |
| Physical characteristics | |
| Dimensions | (H) 4.39 cm
(W) 44.2 cm (D) 24.74 cm (1.73” x 17.4” x 9.74”) |
| Configuration Weight | 3.42 kg (7.54 lbs) |
| Additional Specifications | |
| CPU | Dual Core ARM Cortex A9 @ 1016 Mhz |
| Memory and Flash | 4 GB DDR3
16 GB eMMC |
| Packet Buffer | 12.38MB (4.5MB Ingress/7.875MB Egress) |
| Performance | |
| System Switching Capacity | 104 Gbps |
| System Throughput Capacity | 77.3 Mpps |
| Average Latency (LIFO-64- bytes packets) | 1 Gbps: 1.9 μSec , 10 Gbps: 1.8 μSec |
| Switched Virtual Interfaces (dual stack) | 16 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| MAC Table Capacity | 8,192 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 |
