| Products | RS1221+ |
| CPU | |
| CPU Model | AMD Ryzen V1500B |
| CPU Architecture | 64-bit |
| CPU Frequency | 4-core 2.2 GHz |
| Hardware Encryption Engine (AES-NI) | ✔ |
| Memory | |
| System Memory | 4 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB x 1) |
| Total Memory Slots | 2 |
| Maximum Memory Capacity | 32 GB (16 GB x 2) |
| Storage | |
| Drive Bays | 8 |
| Maximum Drive Bays with Expansion Unit | 12 (RX418 x 1) |
| Compatible Drive Type | ● 3.5″ SATA HDD ● 2.5″ SATA HDD ● 2.5″ SATA SSD |
| Maximum Single Volume Size | 108 TB |
| Hot Swappable Drive | ✔ |
| External Ports | |
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port | 2 |
| eSATA Port | 1 |
| PCIe | |
| PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
| File System | |
| Internal Drives | ● Btrfs ● EXT4 |
| External Drives | ● Btrfs ● EXT4 ● EXT3 ● FAT ● NTFS ● HFS+ ● exFAT |
| Appearance | |
| Form Factor (RU) | 2U |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 306.6 mm |
| Weight | 6.9 kg |
| Rack Installation Support | ● 2-post 19″ rack (direct mounting) ● 4-post 19″ rack (Synology Rail Kit) |
| Others | |
| System Fan | 80 mm x 80 mm x 2 pcs |
| Power Supply Unit | 250 W |
| AC Input Power Voltage | 100 V to 240 V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 49.89 W (Access) 22.64 W (HDD Hibernation) |
| British Thermal Unit | 170.23 BTU/hr (Access) 77.25 BTU/hr (HDD Hibernation) |
| Temperature | |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification | FCC, CE, BSMI, EAC, CCC, KC, VCCI, RCM |
| Optional Accessories | ● DDR4 ECC SODIMM: D4ES01-4G / D4ES01-8G / D4ECSO-2666-16G ● Expansion Units: RX418 ● M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1 ● M.2 SSD Adapter Card: M2D20 ● 10GbE Network Interface Card: E10G18-T2 / E10G18-T1 / E10G17-F2 ● Rail Kit Sliding: RKS1317 ● Rail Kit Mounted: RKM114 ● VisualStation: VS960HD / VS360HD ● Surveillance Device License Pack |

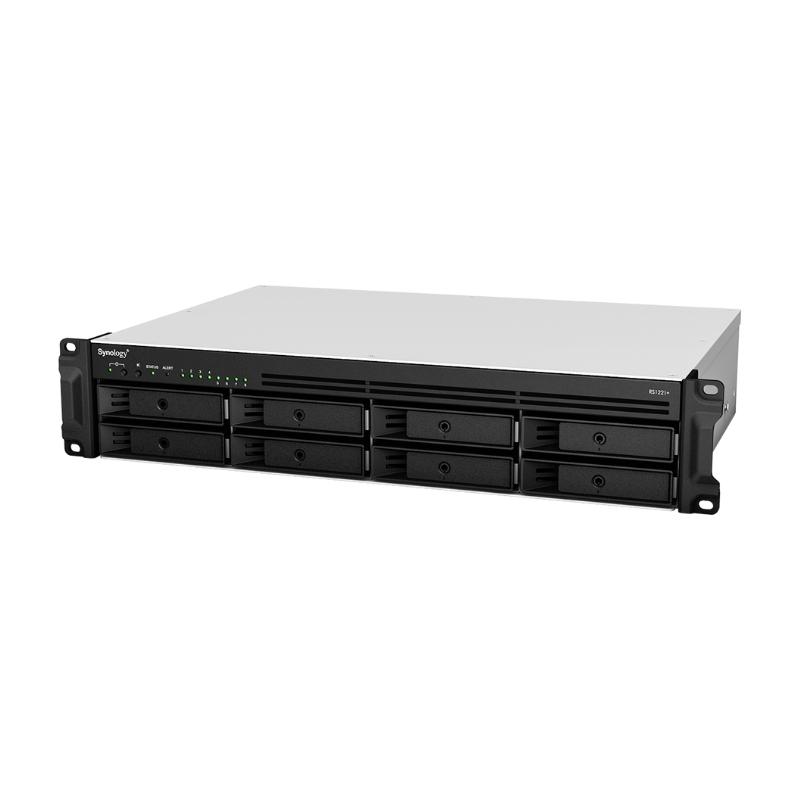

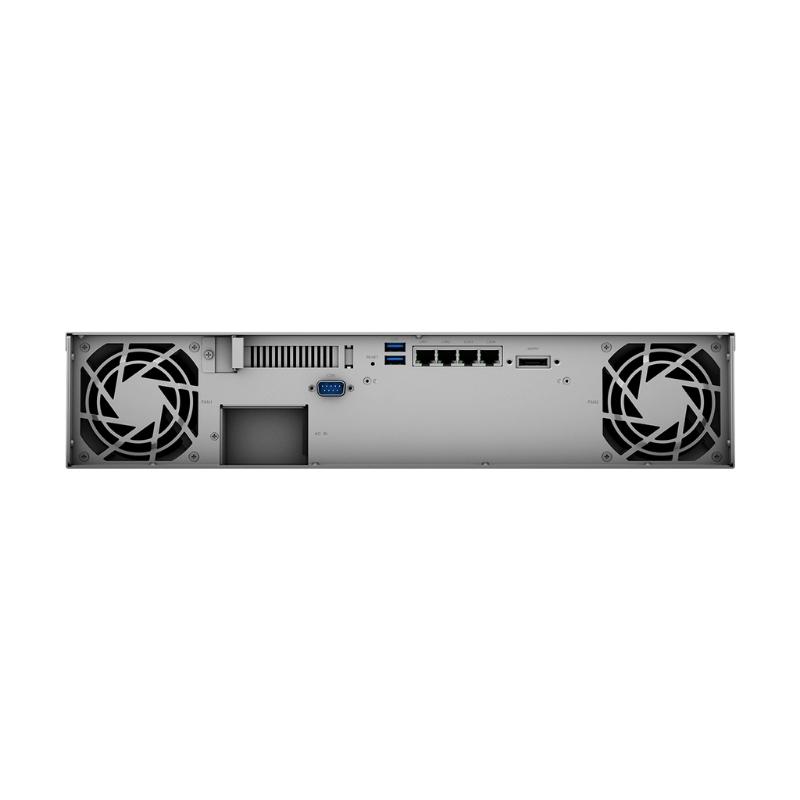

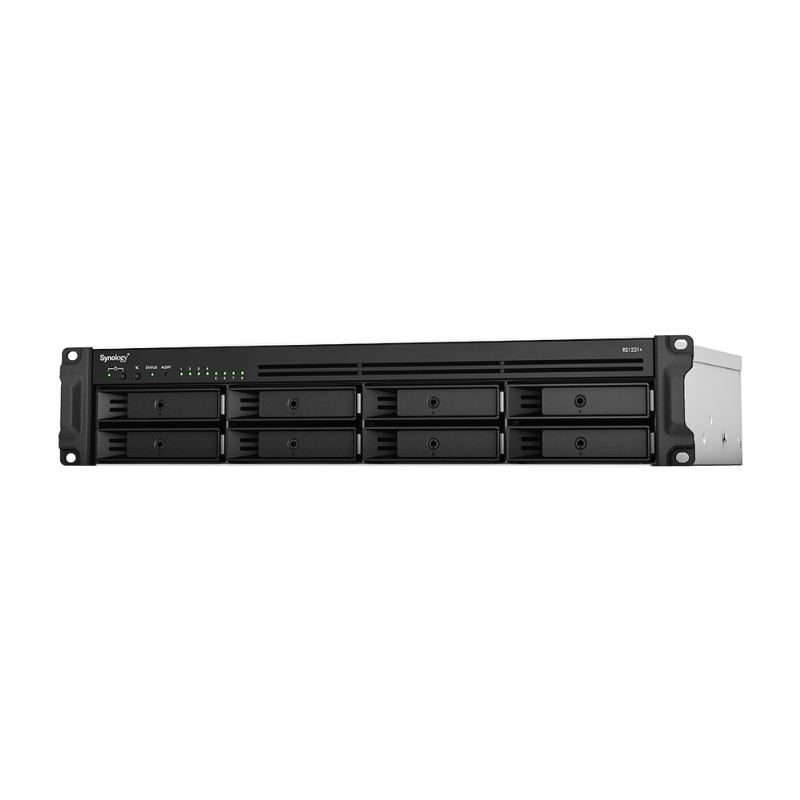

Thiết bị lưu trữ NAS Synology RS1221+
Liên hệ
- NAS 8 khay ổ đĩa max 12 ổ đĩa
4 GB DDR4 ECC up to 32 GB
4 RJ-45 1GbE
Bảo hành 36 tháng
