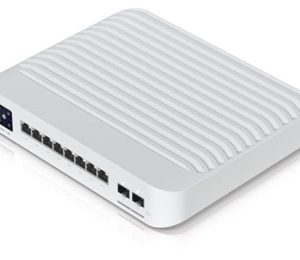

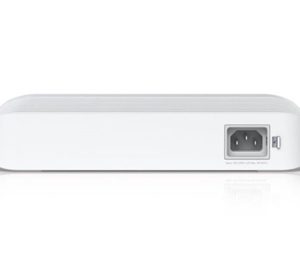

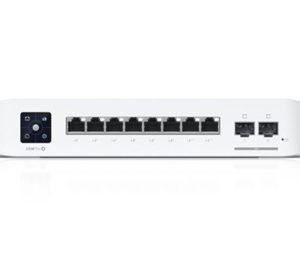

UniFi Switch 8 Cổng PoE Professional | USW-Pro-8-PoE (120W)

Mechanical

Dimensions

200 x 248 x 44 mm (7.9 x 9.8 x 1.7″)

Management interface

Ethernet In-Band

Networking interface

(8) GbE RJ45 ports
(2) 10 Gbps SFP+ ports

PoE interface

(6) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 😎

Total Non-Blocking Throughput

28 Gbps

Switching Capacity

56 Gbps

Power supply

AC/DC, Internal

Power method

Max. power consumption

Total available PoE

120W

Max. PoE+ wattage per port by PSE

PoE: 15W
PoE+: 30W
PoE++: 60W

Voltage range PoE mode

PoE: 44—57V
PoE+: 50—57V
PoE++: 50—57V

LCM display

LEDs

Button

Operating temperature

-5 to 45° C (23 to 113° F)

Operating humidity

10-90% noncondensing

Certifcations

CE, FCC, IC

Application Requirements
