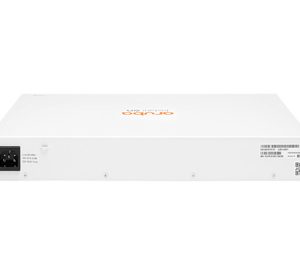

Switch JL814A Aruba Instant On 1830 48G 4SFP
| Aruba Part Number | : JL814A |
| Bảo hành | : Trọn đời |
| Made In | : Liên hệ |
| Stock | : Còn hàng |
JL814A là sản phẩm chuyển mạch thông minh, cung cấp số lượng cổng kết nối lớn với 48 cổng RJ-45 autosensing 10/100/1000, và 4 cổng Uplink quang SFP tốc độ 1000 Mbps. Được thiết kế linh hoạt lắp đặt trong tủ rack, gắn trên tường, hoặc gắn dưới bàn sử dụng giá đỡ Order kèm theo thiết bị.
Thông số kỹ thuật JL814A
| Datasheet JL814A | |
| Specifications | |
| I/O ports and slots | 48 RJ-45 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports |
| Physical Characteristics | |
| Dimensions | 253.0(d) x 443.0(w) x 43.9(h) mm |
| Weight | 7.80 lb (3.54 kg) |
| Memory and Flash | ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
| Performance | |
| Throughput (Mpps) | 77.37 Mpps |
| Switching capacity | 104 Gbps |
| 100 Mb latency | < 5.2 uSec |
| 1000 Mb latency | < 2.8 uSec |
| MAC address table size (# of entries) | 16,000 entries |
| Reliability MTBF (years) | 114.4 |
| Environment | |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) |
| Nonoperating/ storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/ storage relative humidity | 15% to 95% @ 140°F (60°C) |
| Altitude | up to 10,000 ft (3 km) |
| Acoustics1 | |
| Idle | LWAd = 3.3 Bel LpAm (Bystander) = 19 dB |
| 100% traffic | LWAd = 3.4 Bel LpAm (Bystander) = 19 dB |
| 100% traffic / 0% PoE | – |
| 100% traffic / 50% PoE | – |
| 100% traffic / 100% PoE | – |
| Electrical Characteristics | |
| Frequency | 50Hz/60Hz |
| AC voltage | 100-127VAC / 200- 240VAC |
| Current | 0.9A/0.6A |
| Maximum power rating | 100-127V: 40.2W 200-220V: 40W |
| Idle power | 100-127V: 17.7W 200-220V: 17.7W |
| PoE power | – |
| Power supply | Internal power supply |
| Safety | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
| Emissions | EN 55032:2015/CISPR 32, Class A
FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
| Immunity | |
| Generic | EN 55035, CISPR 35, KN35 |
| EN | EN 55035, CISPR 35 |
| ESD | EN/IEC 61000 -4-2 |
| Radiated | EN/IEC 61000 -4-3 |
| EFT/Burst | EN/IEC 61000 -4-4 |
| Surge | EN/IEC 61000 -4-5 |
| Conducted | EN/IEC 61000 -4-6 |
| Power frequency magnetic field | EN/IEC 61000 -4-8 |
| Voltage dips and interruptions | EN/IEC 61000-4-11 |
| Harmonics | EN/IEC 61000 -3-2 |
| Flicker | EN /IEC 61000-3-3 |
| Device Management | Aruba Instant On Cloud; Web browser; SNMP Manager |
| Mounting | |
| Mounting positions and supported racking | Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided |
