Bộ phát wifi Aruba AP-635 (RW) Unified AP (R7J27A)

Model

AP-635

Regulatory model numbers

APIN0635

Part number

R7J27A

AP type

Indoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2×2 MIMO

6 GHz radio

Two spatial stream Single User (SU) MIMO for up to 2.4 Gbps wireless data rate with 2SS HE160 802.11ax client devices

5GHz radio

Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with 2SS HE80 802.11ax client devices

2.4GHz radio

Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with 2SS HE40 802.11ax client devices

Maximum number of associated client devices

Up to 512 associated client devices per radio

Maximum number of BSSIDs

16 BSSIDs per radio (limited to 4 for the 6GHz radio)

Supported frequency bands
(country-specific restrictions apply)

• 2.400 to 2.4835 GHz ISM
• 5.150 to 5.250 GHz U-NII-1
• 5.250 to 5.350 GHz U-NII-2
• 5.470 to 5.725 GHz U-NII-2E
• 5.725 to 5.850 GHz U-NII-3/ISM
• 5.850 to 5.895 GHz U-NII-4
• 5.925 to 6.425 GHz U-NII-5
• 6.425 to 6.525 GHz U-NII-6
• 6.525 to 6.875 GHz U-NII-7
• 6.875 to 7.125 GHz U-NII-8

Supported radio technologies

• 802.11b: Direct-sequence spread-spectrum (DSSS)
• 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
• - 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units (37 for the 6GHz radio)

Supported modulation types

• 802.11b: BPSK, QPSK, CCK
• 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
• 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
• 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

802.11n high-throughput (HT) support

HT20/40

802.11ac very high throughput (VHT) support

VHT20/40/80/160

802.11ax high efficiency (HE) support

HE20/40/80/160

Supported data rates (Mbps)

• 802.11b: 1, 2, 5.5, 11
• 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
• 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) 400 with 256-QAM (proprietary extension)
• 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 1,083 with 1024-QAM (MCS10 and MCS11, proprietary extension)
• 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
• 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
• 802.11ax (6GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)

802.11n/ac/ax packet aggregation

A-MPDU, A-MSDU

Transmit power

Configurable in increments of 0.5 dBm

Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):

• Per radio/band (2.4 GHz/5 GHz/6 GHz): +21 dBm (18 dBm per chain)
• Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.

Additional Wi-Fi features

• Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks
• Maximum ratio combining (MRC) for improved receiver performance
• Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
• Space-time block coding (STBC) for increased range and improved reception
• Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
• Transmit beam-forming (TxBF) for increased signal reliability and range
• 802.11ax Target Wait Time (TWT) to support low-power client devices
• 802.11mc Fine Timing Measurement (FTM) for precision distance ranging

Wi-Fi Antennas

Integrated downtilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 4.6 dBi in 2.4 GHz, 7.0 dBi in 5 GHz and 6.3 dBi in 6 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 to 40 degrees.
• Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 2.9 dBi in 2.4 GHz, 4.9 dBi in 5 GHz and 4.3 dBi in 6 GHz.

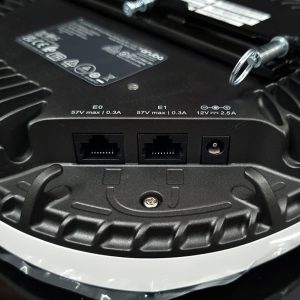

E0, E1: Two Ethernet wired network ports (RJ-45)

• Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
• 2.5Gbps speeds comply with NBase-T and 802.3bz specifications
• POE-PD: 48Vdc (nominal) 802.3at/bt POE (class 4 or higher)
• 802.3az Energy Efficient Ethernet (EEE)

• Link aggregation (LACP) support between both network ports for redundancy and increased capacity

DC power interface

12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length

USB 2.0 host interface (Type A connector)

Capable of sourcing up to 1A / 5W to an attached device

Bluetooth 5 and Zigbee (802.15.4) radio (2.4GHz)

• BLE: up to 5dBm transmit power (class 1) and -100dBm receive sensitivity (125 kbps)
• Zigbee: up to 5dBm transmit power and -97dBm receive sensitivity (250kbps)
• Integrated omnidirectional antenna with roughly 30 to 40 degrees downtilt and peak gain of 3.0 dBi

GNSS L1 (1575.42 MHz) receiver

• Supporting GPS, Galileo, GLONASS, and BeiDou signal

• Receive sensitivity: -160dBm (tracking)
• Integrated omnidirectional antenna with roughly 30 to 40 degrees downtilt and peak gain of 3.6dBi

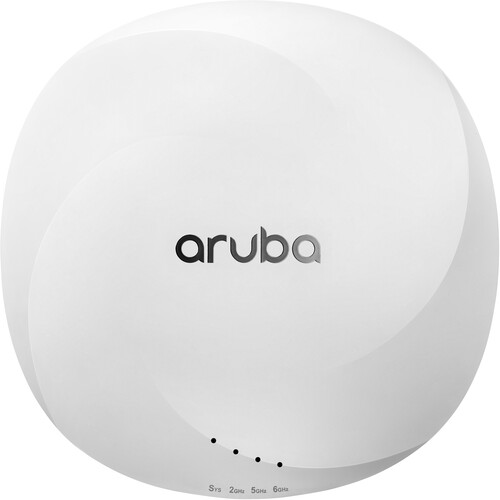

Visual indicators (four multi-color LEDs)

For System (1x) and Radio (3x) status

Reset button

Factory reset, LED mode control (normal/off)

Serial console interface

Proprietary, micro-B USB physical jack

Security slot

Kensington security slot

Power Sources

• The AP supports direct DC power and Power over Ethernet (PoE) on port E0 and/or E1
• When both DC and PoE power sources are available, DC power takes priority over PoE
• When PoE power is supplied to both Ethernet ports, either port can be configured as the active power source
• Inactive/standby PoE power sources can be used to deliver hitless failover
• Power sources are sold separately; see the 630 Series Ordering Guide for details
• When powered by DC or 802.3bt (class 5) PoE, the AP will operate without restrictions.
• When powered by 802.3at (class 4) PoE with the IPM feature disabled, the AP will disable the USB port.
• Operating the AP with an 802.3af (class 3 or lower) POE source is not supported (except for AP staging).
• With IPM enabled, the AP will start up in unrestricted mode but may dynamically apply restrictions depending on the available power budget and actual consumption. The feature restrictions and order in which these get applied are configurable.

Maximum (worst-case) power consumption (without / with a USB device attached)

• DC powered: 20.7W/26.4W.
• PoE powered: 23.8W/29.4W.
• This assumes that up to 5W is supplied to the attached USB device

Maximum (worst-case) power consumption in idle mode

8.7W/14.2W (DC) or 11.7W/17.2W (PoE)

Maximum (worst-case) power consumption in deep-sleep mode

 1.1W (DC) or 1.9W (PoE)

Mounting details

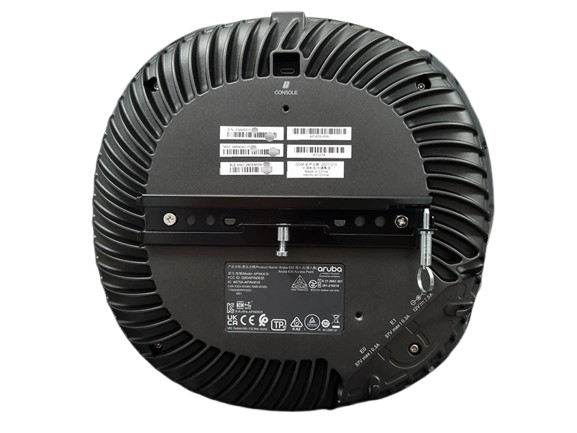

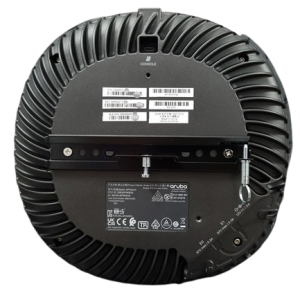

A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately)

Dimensions/weight
(unit, excluding mount bracket)

220mm (W) x 220mm (D) x 51mm (H)
1,300g

Operating conditions

• Temperature: 0C to +50C/+32F to +122F
• Relative humidity: 5% to 95%
• ETS 300 019 class 3.2 environments
• AP is plenum rated for use in air-handling spaces

Storage conditions

• Temperature: -25C to +55C / -13F to +131F
• Relative humidity: 10% to 100%
• ETS 300 019 class 1.2 environments

Mean Time Between Failure (MTBF)

520 khrs (59 yrs) at +25C operating temperature

Minimum ArubaOS Release

• ArubaOS and Aruba InstantOS 8.9.0.0
• ArubaOS 10.4.0.0

Regulatory compliance (For more country-specific regulatory information and approvals, please see your Aruba representative.)

• FCC/ISED
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 60950
• IEC/EN 62368-1
• EN 60601-1-1, EN60601-1-2

Certifications

• UL2043 plenum rating
• Wi-Fi Alliance (WFA):
– Wi-Fi CERTIFIED a, b, g, n, ac
– Wi-Fi CERTIFIED 6E (ax, 6GHz)
– WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
– WMM, WMM-PS, W-Fi Agile Multiband
– Passpoint (release 2)
• Bluetooth SIG
• Ethernet Alliance (PoE, PD device, class 5)
