C1000-8T-2G-L Cisco Catalyst 1000 8 GE Ports, 2 GE Combo Uplink

6,890,000 ₫

Thiết bị chuyển mạch Switch Cisco C1000-8T-2G-L Catalyst 1000 Series 8 cổng 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks, LAN Base giá rẻ

✓ Mã sản phẩm: C1000-8T-2G-L
✓ Tình trạng: Còn Hàng

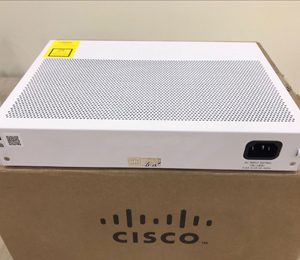

Switch Cisco C1000-8T-2G-L Catalyst 1000 Series

Cisco Part Number
: C1000-8T-2G-L
List Price
: $824
Giá bán
: Giá rẻ nhất thị trường
Bảo hành
: 12 tháng
Made In
: Liên hệ
Stock
: Sẵn hàng

Tổng quan Switch Cisco C1000-8T-2G-L

Thiết bị chuyển mạch Switch Cisco C1000-8T-2G-L là nền tảng chuyển mạch doanh nghiệp đơn giản linh hoạt, được thiết kế cho các hệ thống mạng vừa và nhỏ, IoT (Internet of Things).

Switch Cisco C1000-8T-2G-L cung cấp 8 cổng gigabit 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks cùng với phần mềm Cisco IOS, cung cấp các kết nối layer 2 cơ bản cho các chi nhánh hoặc văn phòng nhỏ.

Thông số kỹ thuật Switch Cisco C1000-8T-2G-L

Description Performance
Hardware
Interface 8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks
Console ports
  • 1x RJ-45 Ethernet
  • 1x USB-A port for storage and Bluetooth console
Indicator LEDs
  • Per-port status: link integrity, disabled, activity
  • System status: system
Dimensions (WxDxH in inches) 10.56 x 7.28 x 1.73
Memory and processor
CPU ARM v7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Performance
Forwarding bandwidth 10 Gbps
Switching bandwidth 20 Gbps
Forwarding rate
(64‑byte L3 packets)		 14.88 Mpps
Unicast MAC addresses 16000
IPv4 unicast direct routes 542
IPv4 unicast indirect routes 256
IPv6 unicast direct routes 414
IPv6 unicast indirect routes 128
IPv4 static routes 16
IPv6 static routes 16
IPv4 multicast routes and IGMP groups 1024
IPv6 multicast groups 1024
IPv4/MAC security ACEs 600
IPv6 security ACEs 600
Maximum active VLANs 256
VLAN IDs available 4094
Maximum STP instances 64
Maximum SPAN sessions 4
MTU-L3 packet 9198 bytes
Jumbo Ethernet frame 10,240 bytes
Dying Gasp Yes
Electrical
Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Voltage (auto ranging) 110 to 220V AC in
Frequency 50 to 60 Hz
Current 0.13A to 0.22A
Power rating (maximum consumption) 0.04 kVA
Safety and compliance
Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
EMC: Emissions 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
EMC: Immunity EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. government certifications USGv6 and IPv6 Ready Logo
