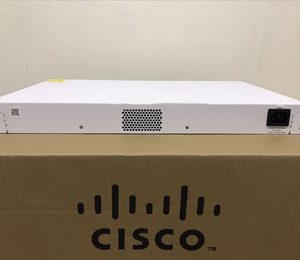

C1000-48P-4G-L Cisco Catalyst 1000 with 48 Ports PoE+ 370W, 4 SFP Uplink

30,800,000 ₫

Thiết bị chuyển mạch Switch Access Cisco C1000-48P-4G-L Catalyst 1000 Series 48 Ports 10/100/1000 Ethernet PoE+ and 370W PoE budget ports, 4x 1G SFP uplinks giá rẻ.

✓ Mã sản phẩm: C1000-48P-4G-L
✓ Tình trạng: Còn Hàng

Switch Cisco C1000-48P-4G-L​

Cisco Part Number
: C1000-48P-4G-L
List Price
: $3,595
Giá bán
: Giá rẻ nhất thị trường
Bảo hành
Made In
: Liên hệ
Stock
:Sẵn hàng

Tổng quan Switch Cisco C1000-48P-4G-L

Thiết bị chuyển mạch Switch Cisco C1000-48P-4G-L được thiết kế cho doanh nghiệp vừa và nhỏ, với giá rẻ hơn các dòng switch 2960x. C1000-48P-4G-L với 48 cổng Gigabit 10/100/1000 Ethernet hỗ trợ PoE+ với tổng công suất lên tới 370W, 4x 1G SFP uplinks, cung cấp các kết nối Layer 2 trong hệ thống mạng và cấp nguồn cho các thiết bị Camera, Ip Phone…

Switch Cisco C1000-48P-4G-L cung cấp các tính năng layer 2 như VLAN, STP, Trunking,… các tính năng bảo mât, và 1 số giao thức layer 3 cơ bản như RIP, Static Route cho các hệ thống mạng TCP/IP vừa và nhỏ, hỗ trợ trên cả IPv4 và IPv6.

Thông số kỹ thuật Switch Cisco C1000-48P-4G-L

Description Performance
Hardware
Interface 48x 10/100/1000 Ethernet ports PoE+, 370W PoE budget, 4x 1G SFP uplinks
Console ports
  • 1x RJ-45 Ethernet
  • 1x USB-A port for storage and Bluetooth console
Indicator LEDs
  • Per-port status: link integrity, disabled, activity
  • System status: system
Dimensions (WxDxH in inches) 17.48 x 13.78 x 1.73
Weight 5.43
Memory and processor
CPU ARM v7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Performance
Forwarding bandwidth 52 Gbps
Switching bandwidth 104 Gbps
Forwarding rate
(64‑byte L3 packets)		 77.38 Mpps
Unicast MAC addresses 16000
IPv4 unicast direct routes 542
IPv4 unicast indirect routes 256
IPv6 unicast direct routes 414
IPv6 unicast indirect routes 128
IPv4 multicast routes and IGMP groups 1024
IPv6 multicast groups 1024
IPv4/MAC security ACEs 600
IPv6 security ACEs 600
Maximum active VLANs 256
VLAN IDs available 4094
Maximum STP instances 64
Maximum SPAN sessions 4
MTU-L3 packet 9198 bytes
Jumbo Ethernet frame 10,240 bytes
Dying Gasp Yes
Electrical
Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Voltage (auto ranging) 110 to 220V AC in
Frequency 50 to 60 Hz
Current 0.37A to 0.64A
Power rating (maximum consumption) 0.48 kVA
PoE Support PoE+
PoE Power 370W
PoE on Interface 30W for 12 ports or 15W for 24 ports
Safety and compliance
Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1
GB 4943.1-2011
EMC: Emissions 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: Immunity EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. government certifications USGv6 and IPv6 Ready Logo
