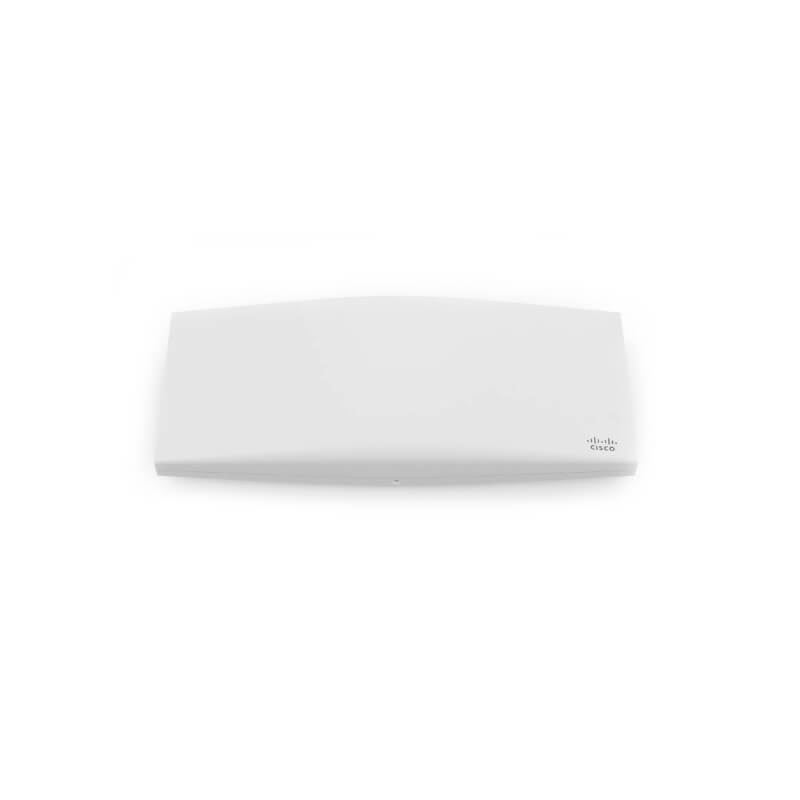

Cisco Meraki MR56-HW

Liên hệ

  • Part Number: MR56
  • Mô Tả: Cisco Meraki Wi-Fi 6 (802.11ax) with Multigigabit Ethernet
  • Giá Price List: $ Liên hệ
  • Tình Trạng: New Fullbox 100%
  • Stock: Có sẵn hàng
  • Bảo Hành: 12 Tháng
  • CO, CQ: Có đầy đủ
  • Xuất Xứ: Chính hãng
Specifications
Radios
  • 2.4 GHz 802.11b/g/n/ax client access radio
  • 5 GHz 802.11a/n/ac/ax client access radio
  • 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio
  • 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
  • Concurrent operation of all four radios
  • Supported frequency bands (country-specific restrictions apply)
  • Supported frequency bands (country-specific restrictions apply):
    • 2.412-2.484 GHz
    • 5.150-5.250 GHz (UNII-1)
    • 5.250-5.350 GHZ (UNII-2)
    • 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
    • 5.725 -5.825 GHz (UNII-3)
Antenna Internal Antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
802.11ax, 802.11ac Wave 2 and 802.11n Capabilities
  • DL-OFDMA**, UL-OFDMA**, TWT support**, BSS Coloring**
  • 8 x 8 multiple input, multiple output (MIMO) with eight spatial streams on 5GHz
  • 4 x 4 multiple input, multiple output (MIMO) with four spatial streams on 2.4GHz
  • SU-MIMO, UL MU-MIMO** and DL MU-MIMO support
  • Maximal ratio combining (MRC) & beamforming
  • 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax)
  • Up to 1024-QAM on both 2.4 GHz & 5 GHz bands
  • Packet aggregation
Power
  • Power over Ethernet: 42.5 – 57 V (802.3at compliant)
  • Alternative: 12 V DC input
  • Power consumption: 22W max (802.3at)
  • Power over Ethernet injector and DC adapter sold separately
Interfaces
  • 1x 100/1000/2.5G/5G BASE-T Ethernet (RJ45)
  • 1x DC power connector (5.5 mm x 2.5 mm, center positive)
Mounting
  • All standard mounting hardware included
  • Desktop, ceiling, and wall mount capable
  • Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes
  • Bubble level on mounting cradle for accurate horizontal wall mounting
Physical Security
  • Two security screw options (included) (3.5 mm long and 2.5 mm diameter and 5 mm head)
  • Kensington lock hard point
  • Concealed mount plate with anti-tamper cable bay
Environment
  • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
  • Humidity: 5 to 95% non-condensing
Physical Dimensions
  • 12.83” x 5.54” x 1.76” (32.6 cm x 14.079 cm x 4.47 cm), not including deskmount feet or mount plate
  • Weight: 1 kg
Security
  • Integrated Layer 7 firewall with mobile device policy management
  • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
  • Flexible guest access with device isolation
  • VLAN tagging (802.1q) and tunneling with IPsec VPN
  • PCI compliance reporting
  • WEP***, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 – Personal**, WPA3 – Enterprise**, WPA3 – Enhanced Open (OWE)**
  • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
  • TKIP and AES encryption
  • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
  • Cisco ISE integration for Guest access and BYOD Posturing
Quality of Service
  • Advanced Power Save (U-APSD)
  • WMM Access Categories with DSCP and 802.1p support
  • Layer 7 application traffic identification and shaping
Mobility
  • PMK, OKC, & 802.11r for fast Layer 2 roaming
  • Distributed or centralized layer 3 roaming
Analytics
  • Embedded location analytics reporting and device tracking
  • Global L7 traffic analytics reporting per network, per device, & per application
LED Indicators 1 power/booting/firmware upgrade status
Regulatory
  • RoHS
  • For additional country-specific regulatory information, please contact Meraki sales
Warranty Lifetime hardware warranty with advanced replacement included
Ordering Information
  • MR56-HW: Meraki MR56 Cloud Managed 802.11ax AP
  • MA-PWR-30W-XX: Meraki AC Adapter for MR Series (XX = US/EU/UK/AU)
  • MA-INJ-4-XX: Meraki Gigabit 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)
  • MA-INJ-5-XX: Meraki Multigigabit 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)
  • Note: Meraki access point license required.
Compliance and Standards
IEEE Standards 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11k, 802.11n, 802.11r, and 802.11u
Safety Approvals
  • CSA and CB 60950 & 62368
  • Conforms to UL 2043 (Plenum Rating)
Radio Approvals
  • Canada: FCC Part 15C, 15E, RSS-247
  • Europe: EN 300 328, EN 301 893
  • Australia/NZ: AS/NZS 4268
  • Mexico: IFT, NOM-208
  • Taiwan: NCC LP0002
  • For additional country-specific regulatory information, please contact Meraki Sales
EMI Approvals (Class B)
  • Canada: FCC Part 15B, ICES-003
  • Europe: EN 301 489-1-17, EN 55032, EN 55024
  • Australia/NZ: CISPR 22
  • Japan: VCCI
Exposure Approvals
  • Canada: FCC Part 2, RSS-102
  • Europe: EN 50385, EN 62311, EN 62479
  • Australia/NZ: AS/NZS 2772
