Model | Instant On AP32 (S1T23A) |
Radios | • Dual-Radio, tri-band 802.11ax 2×2 6GHz/5GHz/2.4GHz MIMO |
Maximum bandwidth support | • 20/40/80/160MHz |
Maximum data rate | • 2.4Gbps (6GHz) • 1.2Gbps (5GHz) • 574 Mbps (2.4GHz) |

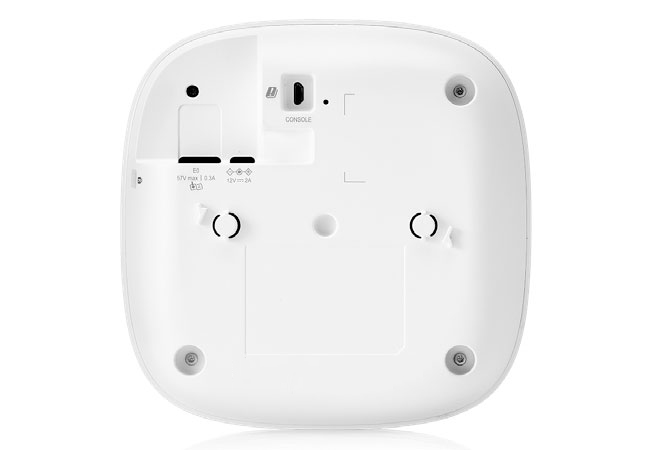

Interfaces | • 1x 2.5GbE Base-T uplink port • DC power connector • LED status indicators • Reset/LED control button • Kensington security slot |
Recommended number of devices | • 75 |
Antennas | • Dual omni-directional 2×2 MIMO |
Antenna gain | • 2.8dBi in 2.4GHz • 4.5dBi in 5GHz and 6GHz |
Maximum transmit power | • 5GHz & 6GHz band: +21dBm (+18dBm per chain, 3dB MIMO gain) • 2.4GHz band: +21dBm (+18dBm per chain, 3dB MIMO gain) |
Power options | • PoE: 802.3at (class 4) • DC power (12V) |
Power over Ethernet | • PoE In: 802.3at |
Max power consumption | • 12.9W (PoE) • 11.0W (DC) |
Physical specifications (W x D x H) | • 160mm x 160mm x 39mm • Weight: 520g |
Mounting | • Ceiling/Wall-mount clip |
Operating temperature | • 0° C to +40° C |
Reliability (MTBF – Years) | • 62 |

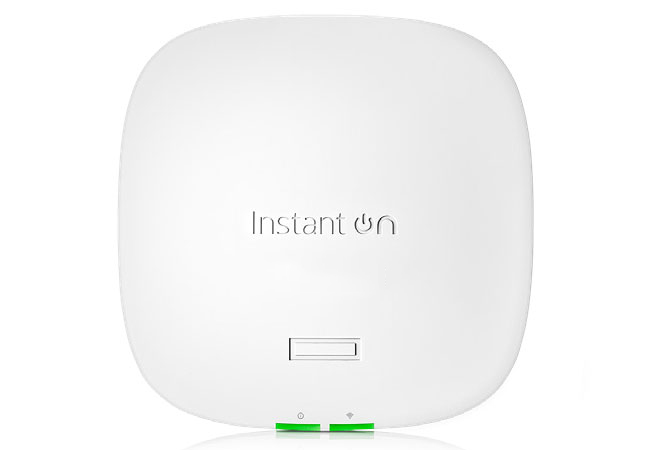

HPE NW ION AP (RW) AP32 | S1T23A
Liên hệ
- Radio kép, ba băng tần 802.11ax 2×2 6GHz/5GHz/2.4GHz MIMO
- Ăng-ten kép đa hướng 2×2 MIMO
- 1 cổng uplink 2.5GbE Base-T
- Hỗ trợ nguồn PoE 802.3at hoặc DC
- Số lượng thiết bị kết nối khuyến nghị : 75
- Cấu hình dễ dàng qua CLoud Portal hoặc ứng dụng trên điện thoại
