Instant On AP22 (RW) Access Point | R4W02A

Liên hệ

Bộ phát băng tần kép chuẩn ax 2X2:2
Tốc độ WiFi 6 lên đến 1.8Gbps (1.2Gbps: 5GHz và 574 Mbps: 2.4GHz).
Cổng Uplink Ethernet 1GbE
Chuẩn Wi-Fi 6 hỗ trợ các tính năng quan trọng: MU-MIMO, OFDMA, TWT,…
Hỗ trợ Smart Mesh WiFi
Quản lý tập trung với Ứng dụng Aruba Instant On

Description

Product	Instant On AP25
Description	Indoor, dual radio, 5 GHz 802.11ac 2×2 MIMO and 2.4 GHz 802.11n 2×2 MIMO
Product Type	Access Point

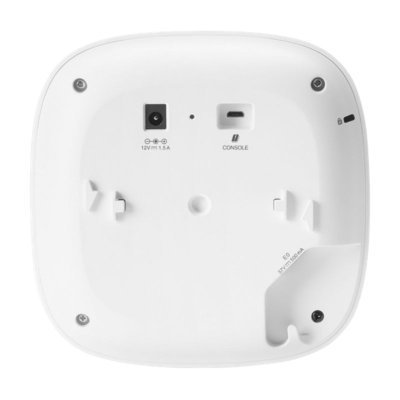

Interfaces	– Uplink 2.5 Gigabit Ethernet port, with PoE-in support (802.3at) – DC power connector (12V) Bluetooth Low Energy (BLE) radio LED status indicators (2) Reset/LED control button Kensington security slot
Radios	Dual radio for simultaneous dual-band operation – 5 GHz 802.11ax 2×2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) – 2.4 GHz 802.11ax 2×2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
Antennas	Down-tilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band)
Transmit Power	– 5GHz band: +21dBm (+18dBm per chain, 3dB MIMO gain) – 2.4Ghz band: +21dBm (+18dBm per chain, 3dB MIMO gain)
Features	Orthogonal frequency-division multiple access (OFDMA)
	Target wake time (TWT)
	Multiuser, Multiple input, Multiple output (MU-MIMO)
	1024-Quadrature Amplitude Modulation (1024-QAM)
	Trusted Platform Module (TPM)
	Aruba Advanced Cellular Coexistence (ACC)
	Low Density Parity Check (LDPC)
	Transmit Beamforming (TXBF)
Mouting	– The access point ships with a white mount clip that can attach to both walls and ceilings – Mounts that match the design of the APs can be purchased separately
Physical specs	160mm x 160mm x 37mm, excluding mount accessoriesWeight: 500g
Power	– Power over Ethernet (POE): 802.3at (class 4) – Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC) – DC power (12V)
Management Option	– Instant On mobile application (Android & iOS) – Cloud Portal: Portal.ArubaInstantOn.com
