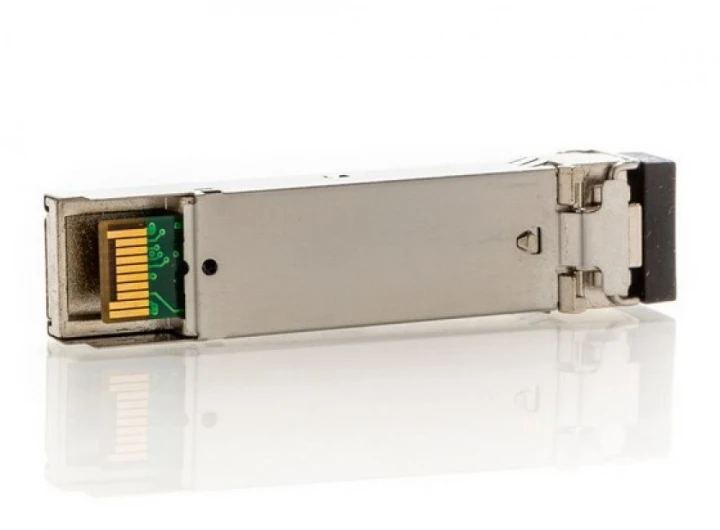

JUNIPER SRX-SFP-10GE-SR

Liên hệ

10GBASE-SR SFP+ 850nm 300m optical transceiver
High Quality with ISO9001, TUV, CE, FCC, UL and RoHS certificates
Factory New
Fully compatible with Juniper
Operating data rate up to 10.3Gbps
850nm VCSEL Transmitter
Distance up to 300m @50 / 125 um MMF
Single 3. 3V Power supply and TTL Logic Interface

Description

Mã sản phẩm	SRX-SFP-10GE-SR
Model Type	10 Gigabit Ethernet
Loại module quang	SFP+
Chuẩn kết nối	LC
Monitoring Available	Yes
Digital Optical Monitoring	Yes
Standard	10GBASE-SR
Digital Diagnostic Monitoring	Transceiver temperature Transceiver supply voltage TX bias current TX output power RX received optical power
Tốc độ đường truyền	10Gbps
Sử dụng cáp	Dual
Bước sóng hoạt động (range)	850nm
Transmitter output power, each lane (minimum)	–7.3dBm
Transmitter output power, each lane (maximum)	–1dBm
Receiver input power, each lane (minimum)	–9.9dBm
