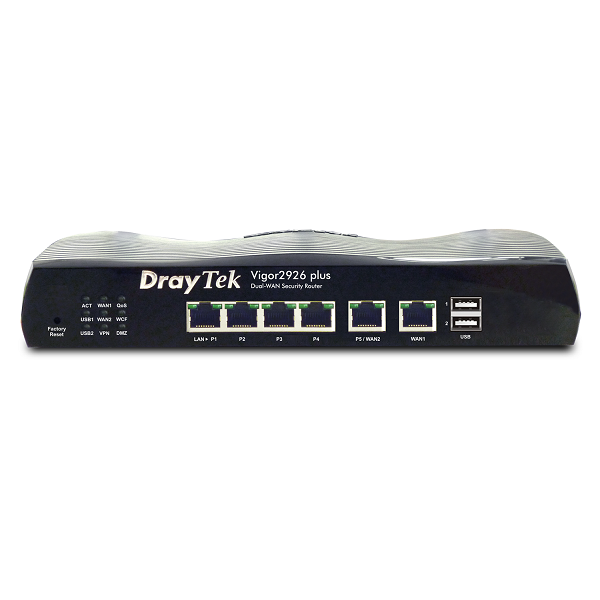

Thiết bị cân bằng tải Draytek Vigor 2926 Plus

Liên hệ

Cổng kết nối: WAN 1&2: 2 x Gigabit RJ45 port
AN 3&4: 2 x USB 2.0 gắn modem 3G/4G/LTE, LAN: 4x Gigabit RJ45 port, 8 lớp mạng (802.1q VLAN tag) giúp tăng bảo mật và khả năng quản lý hệ thống
Tốc độ LAN: 10/100/1000Mbps
Nhu cầu sử dụng: Doanh nghiệp, Nhà hàng
Số thiết bị truy cập: < 100 User

Mô tả

PHẦN CỨNG
Port	2 x GbE WAN 4 x GbE LAN 2 x USB 2.0
Nguồn	DC 12V/1.5A
Nút điều khiển	1 x Factory Reset Button
PHẦN MỀM
WAN	Ethernet WAN DHCP Client Static IP PPPoE PPTP / L2TP (WAN-2 only) 802.1q Multi-VLAN Tagging IPv6 Connection Type Dual Stack: PPP, DHCPv6 Client, Static IPv6 Tunnel Mode: TSPC, AICCU, 6rd, 6in4 Static Tunnel USB WAN PPP(3G) / CDC driver(3G) / support IPv6 protocol :TSPC/AICCU Dual WAN Load-Balance / Route Policy Outbound policy-based load-balance WAN Connection Failover Multiple-VLAN
Network	Hotspot Web Portal Packet Forwarding Acceleration DHCP client/relay/server DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125 IGMP v2/v3 LAN DNS /DNS Forwarding Dynamic DNS NTP Client Call Scheduling RADIUS /TACACS+ Client Internal RADIUS Server Active Directory /LDAP compatible (client) DNS Cache/Proxy and LAN DNS UPnP 50 sessions Wake on LAN Bonjour service Routing Protocol: Static Routing RIP v1/v2 BGP Triple-Play Application IGMP snooping/proxy 8 x Multiple Subnet LAN
Management	Web-based User Interface (HTTP/HTTPS) CLI (Command Line Interface, Telnet/SSH) Administration Access Control Configuration Backup/Restore Built-in Diagnostic Function Firmware Upgrade via TFTP/HTTP/TR-069 Logging via Syslog SNMP v2/v3 Support SMS/E-mail Alert Management Session Time Out Two-level Management (Admin/User Mode) External device detection (master mode) TR-069/TR-104 Support Multiple-Firmware Upgrade Utility (MFUU) Dashboard
Chất lượng dịch vụ	QoS Guarantee bandwidth for VoIP Class-based bandwidth guarantee by user-defined traffic categories DiffServ Code Point classifying 4-level priority for each direction (Inbound/Outbound) Bandwidth borrowed Bandwidth/Session limitation Smart Bandwidth Limit config by ip range Layer-3 (TOS/DSCP) QoS Layer-2 (802.1p) QoS WAN budget
VPN	Up to 50 VPN Tunnels (including 25 SSL VPN tunnels) VPN Wizard VPN Trunk with Backup / Load Balance Protocol : PPTP, IPsec, L2TP, L2TP over IPsec, GRE over IPSec Encryption : MPPE and hardware-based AES/DES/3DES Authentication : MD5, SHA-1 IKE Authentication : Pre-shared Key and Digital Signature (X.509) LAN-to-LAN, Teleworker-to-LAN (remote user dial-in) DHCP over IPsec IPsec NAT-traversal (NAT-T) Dead Peer Detection (DPD) VPN Pass-through mOTP
Tính năng nâng cao	Firewall DMZ Host：Port-redirection, Open Port, Port Triggering User-based / Rule-based Firewall Object-based Firewall：SPI (Stateful Packet Inspection) (Flow Track) DoS Prevention Time Schedule Control DNS Filter Enhancement User Management Firewall Wizard Mode and Advanced Mode CSM (Content Security Management) APP Enforcement Support APPE Signature Upgrade by license URL Content Filter Access Control : URL Keyword Blocking (White/Black List) Web Feature : Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking Web Content Filter (support Cyren and BPjM) DNS Filter Central Device Management AP Management VPN Management Switch Management External Devices
USB	File System Support FAT32 File System Support FTP Function for File Sharing 3.5G (HSDPA) and 4G (LTE) as WAN3/WAN4 by using USB dongle (can support Dual USB WAN) USB Device Status (disk/modem/printer/sensor) Support USB Temperature Sensor Support file sharing (DrayTek’s own SMB protocol stack)
THÔNG SỐ KHÁC
Môi trường	Temperature Operating : 0°C ~ 45°C Temperature Storage : -25°C ~ 70°C Humidity :10% ~ 90% ( non-condensing )
