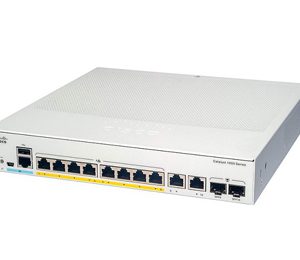

C1000-8P-2G-L Cisco Catalyst 1000 with 8 Ports PoE+ 67W, 2 GE Combo Uplink, LAN Base

6,853,920 ₫

Switch Cisco C1000-8P-2G-L Catalyst 1000 Series 8 cổng 10/100/1000 Ethernet PoE+ ports and 67W PoE budget, 2x 1G SFP and RJ-45 combo uplinks, LAN Base giá rẻ

✓ Mã sản phẩm: C1000-8P-2G-L
✓ Tình trạng: Còn Hàng

Switch Cisco C1000-8P-2G-L​ Catalyst 1000 Series

Part Number
: C1000-8P-2G-L
List Price
: $840
Giá bán
: Giá rẻ nhất thị trường
Bảo hành
:
Made In
: Liên hệ
Stock
: Sẵn hàng

Tổng quan Switch Cisco C1000-8P-2G-L

Thiết bị chuyển mạch Switch Cisco C1000-8P-2G-L là nền tảng chuyển mạch doanh nghiệp đơn giản linh hoạt, giá rẻ được thiết kế cho các hệ thống mạng vừa và nhỏ cho các văn phòng hoặc chi nhánh.

Switch Cisco C1000-8P-2G-L cung cấp 8 cổng gigabit 10/100/1000 hỗ trợ PoE+ lên tới 67W (30W cho 2 cổng hoặc 15W cho 4 cổng bất kỳ), 2x 1G SFP and RJ-45 combo uplinks cùng với phần mềm Cisco IOS LAN Base, cung cấp các kết nối layer 2 cơ bản cho các chi nhánh hoặc văn phòng nhỏ.

Thông số kỹ thuật Switch Cisco C1000-8P-2G-L

Description Performance
Hardware
Interface 8x 10/100/1000 Ethernet ports PoE+, 2x 1G SFP and RJ-45 combo uplinks
Console ports
  • 1x RJ-45 Ethernet
  • 1x USB-A port for storage and Bluetooth console
Indicator LEDs
  • Per-port status: link integrity, disabled, activity
  • System status: system
Dimensions (WxDxH in inches) 10.56 x 12.73 x 1.73
Memory and processor
CPU ARM v7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Performance
Forwarding bandwidth 10 Gbps
Switching bandwidth 20 Gbps
Forwarding rate
(64‑byte L3 packets)		 14.88 Mpps
Unicast MAC addresses 16000
IPv4 unicast direct routes 542
IPv4 unicast indirect routes 256
IPv6 unicast direct routes 414
IPv6 unicast indirect routes 128
IPv4 multicast routes and IGMP groups 1024
IPv6 multicast groups 1024
IPv4/MAC security ACEs 600
IPv6 security ACEs 600
Maximum active VLANs 256
VLAN IDs available 4094
Maximum STP instances 64
Maximum SPAN sessions 4
MTU-L3 packet 9198 bytes
Jumbo Ethernet frame 10,240 bytes
Dying Gasp Yes
Electrical
Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Voltage (auto ranging) 110 to 220V AC in
Frequency 50 to 60 Hz
Current 0.22A to 0.27A
Power rating (maximum consumption) 0.11 kVA
PoE Support PoE+ 67W
Total PoE Ports 30W for any 2 ports or 15W for any 4 ports
Safety and compliance
Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1
GB 4943.1-2011
EMC: Emissions 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
EMC: Immunity EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. government certifications USGv6 and IPv6 Ready Logo

Sản phẩm tương tự

C1000-48P-4G-L Cisco Catalyst 1000 with 48 Ports PoE+ 370W, 4 SFP Uplink

30,800,000 ₫

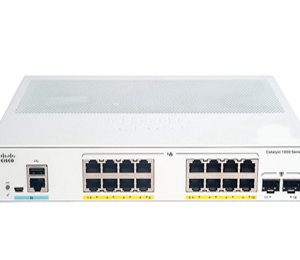

C1000-16T-2G-L Cisco Catalyst 1000 with 16 Ports GE, 2 SFP Slot Uplink

9,820,080 ₫

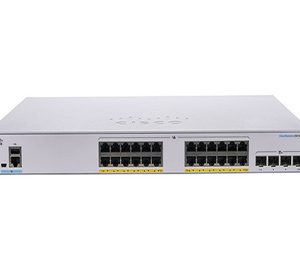

C1000-24P-4G-L Switch Cisco 24 Ports PoE+ 195W, 4 SFP Uplink, LAN Base

17,693,520 ₫

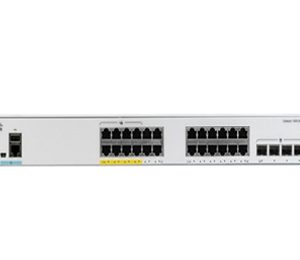

C1000-24T-4G-L Cisco Catalyst 1000 with 24 Ports GE, 4 SFP Uplink

11,740,800 ₫

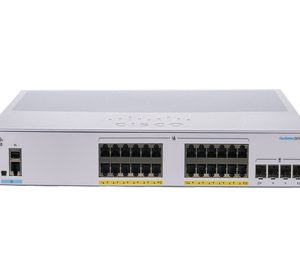

C1000-24FP-4G-L Cisco Catalyst 1000 with 24 Ports PoE+ 370W, 4 SFP Uplink

30,850,000 ₫

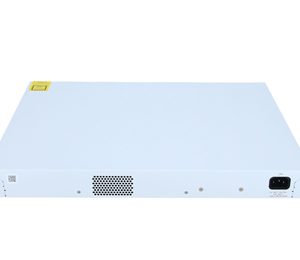

C1000-48FP-4G-L Cisco Catalyst 1000 with 48 Ports PoE+ 740W, 4 SFP Uplink
