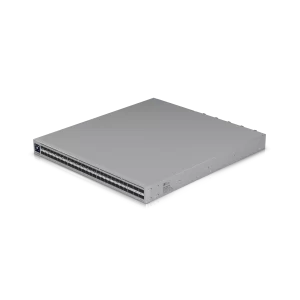

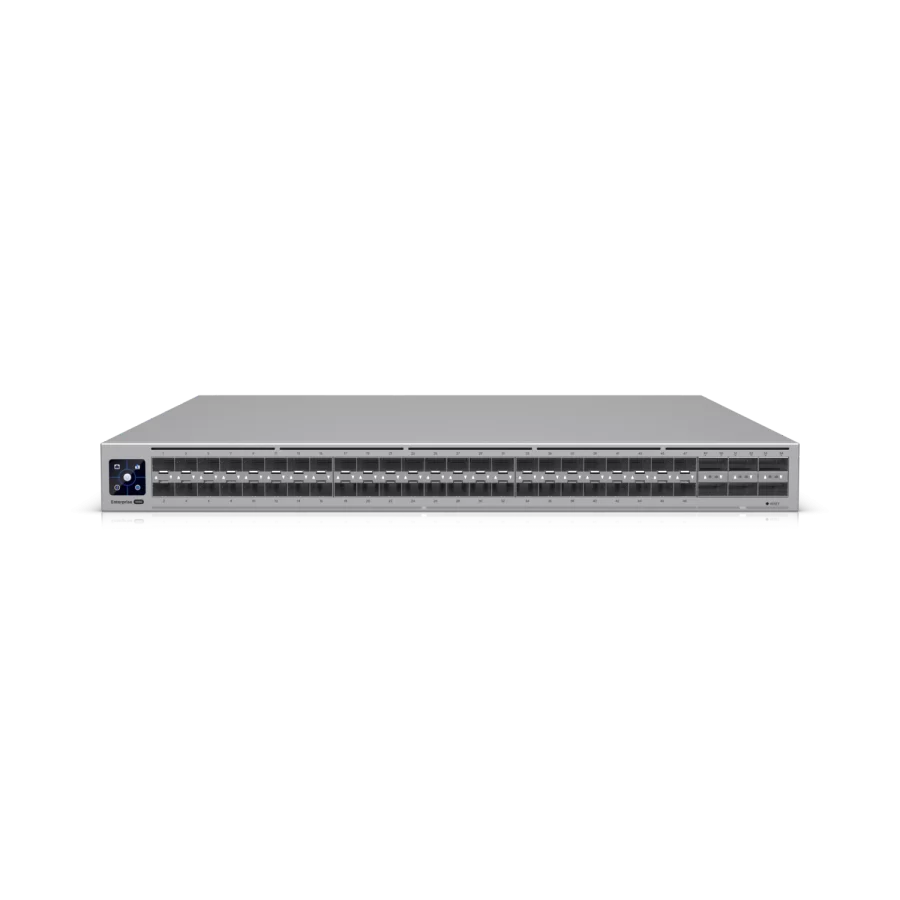

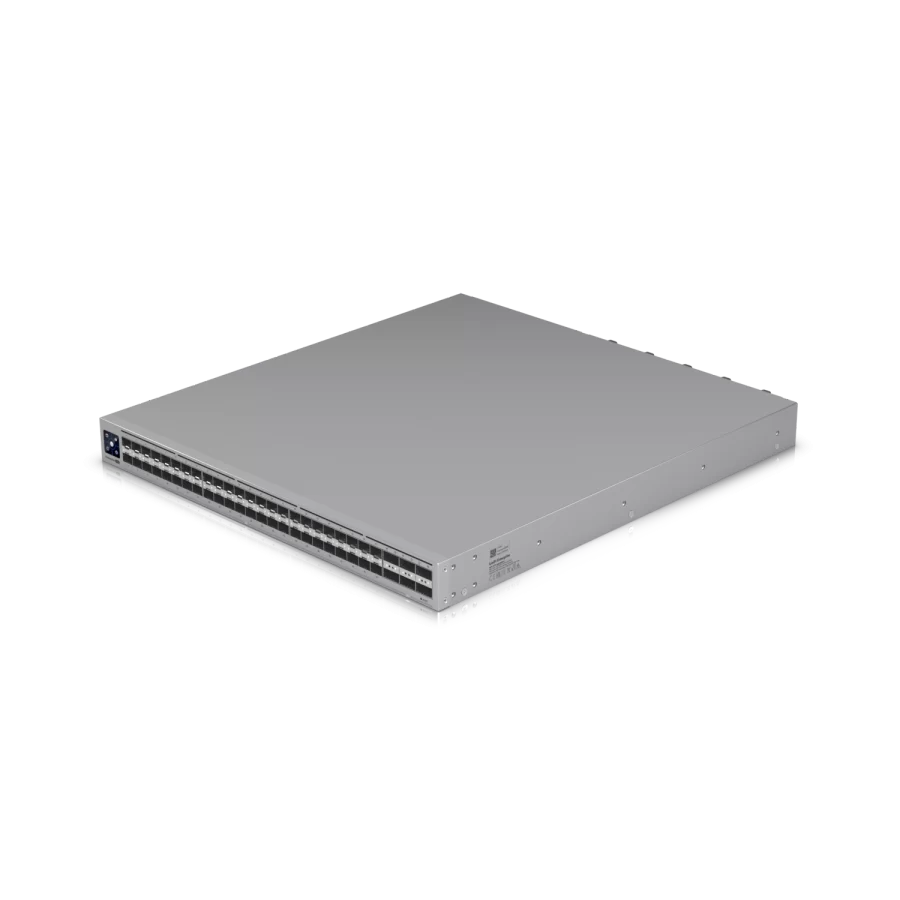

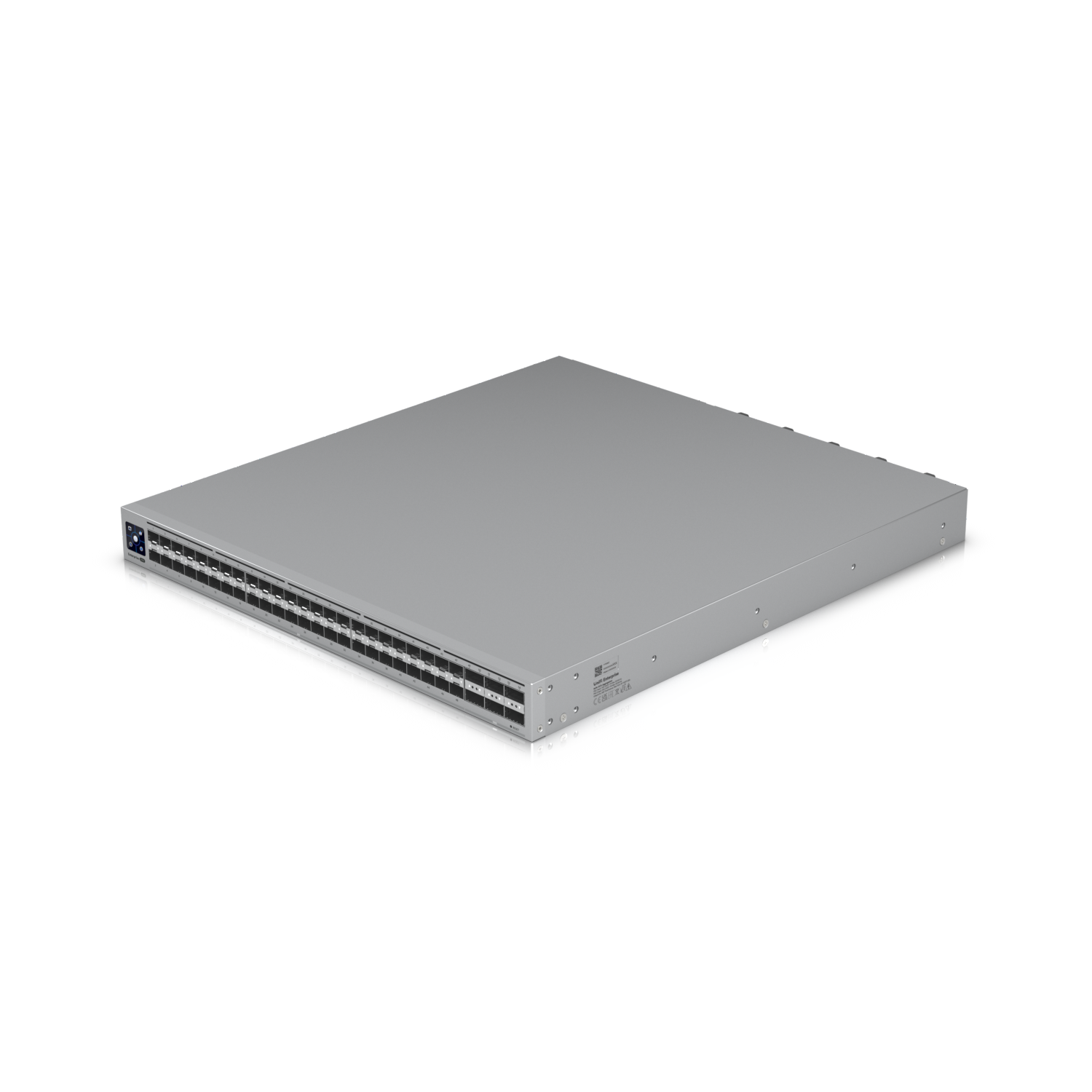

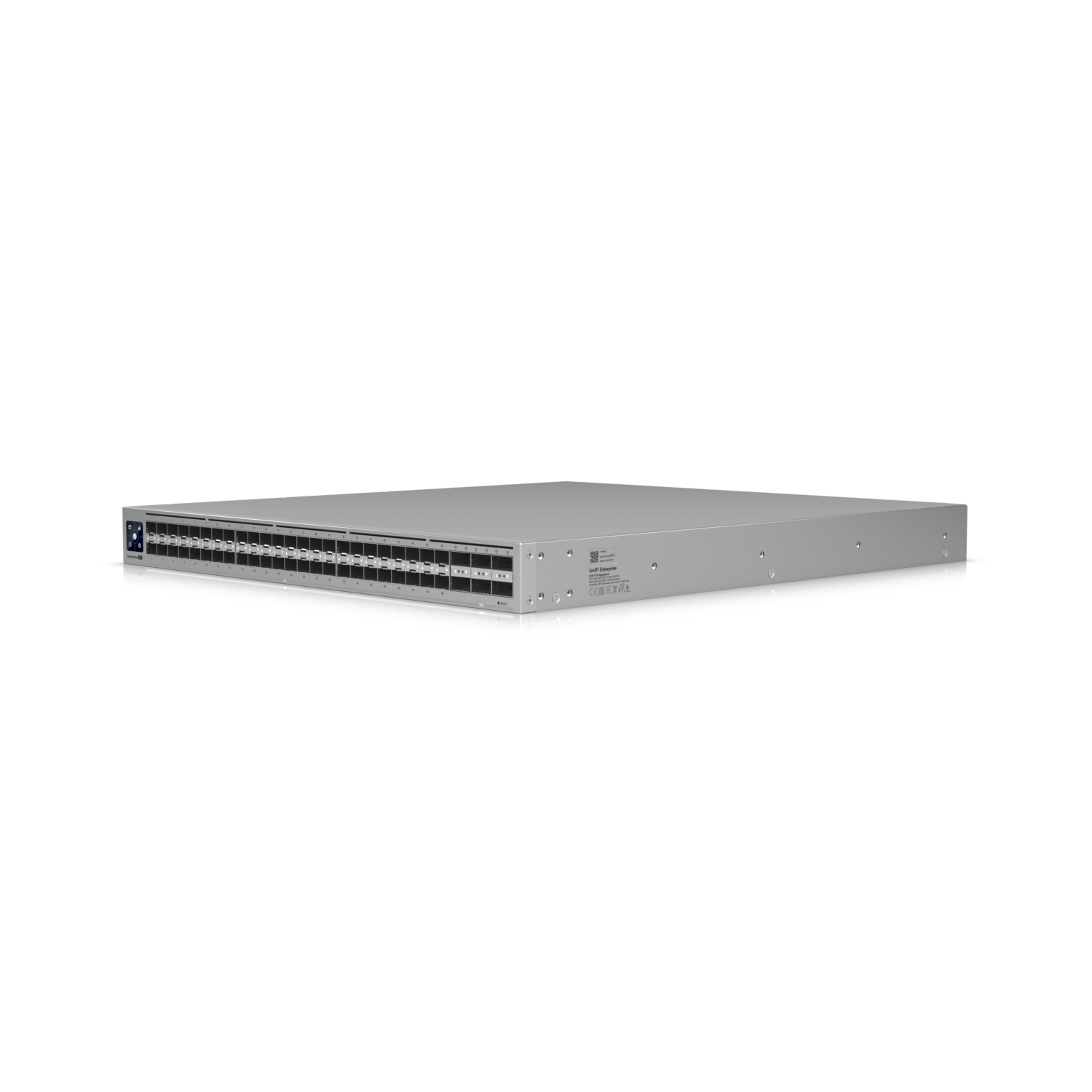

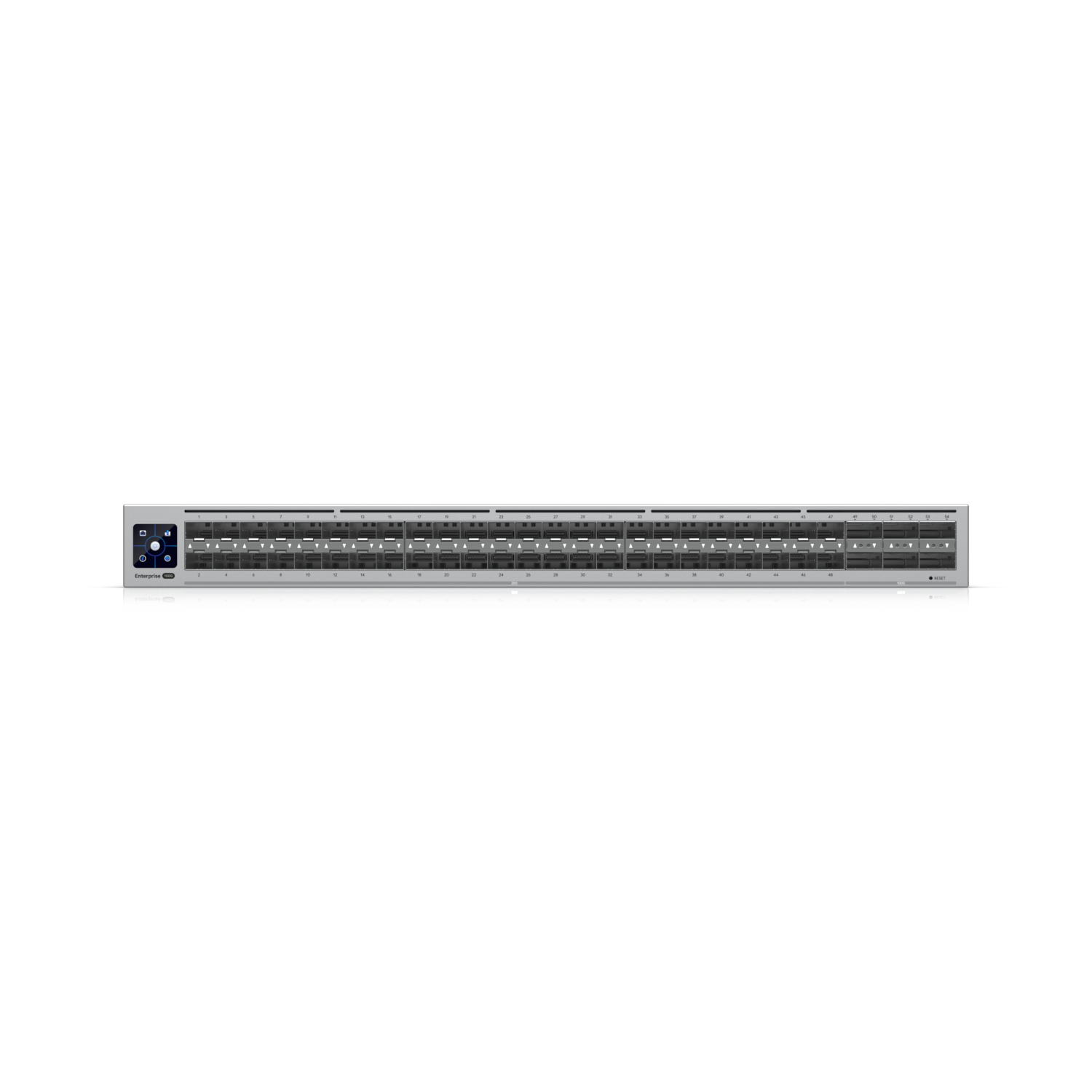

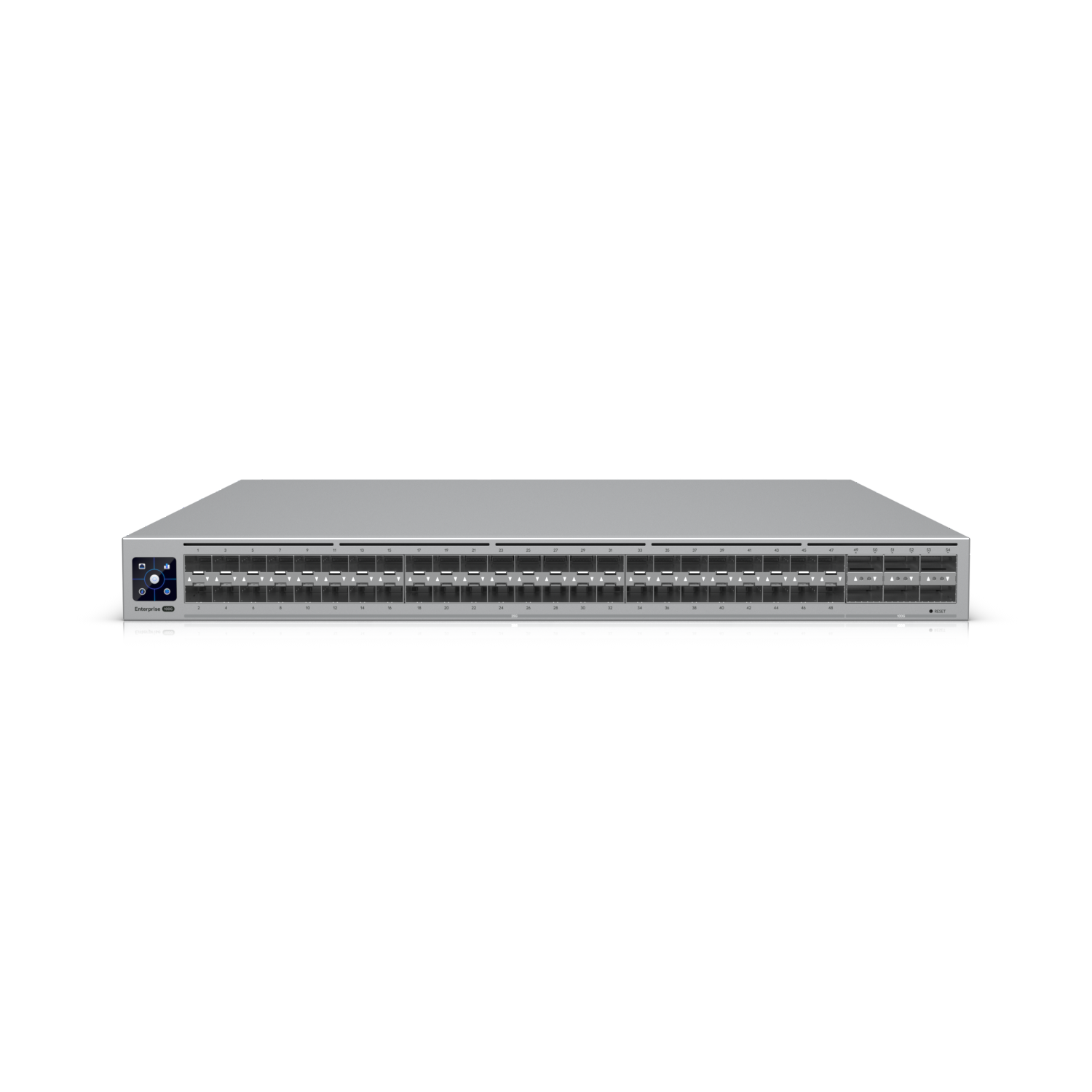

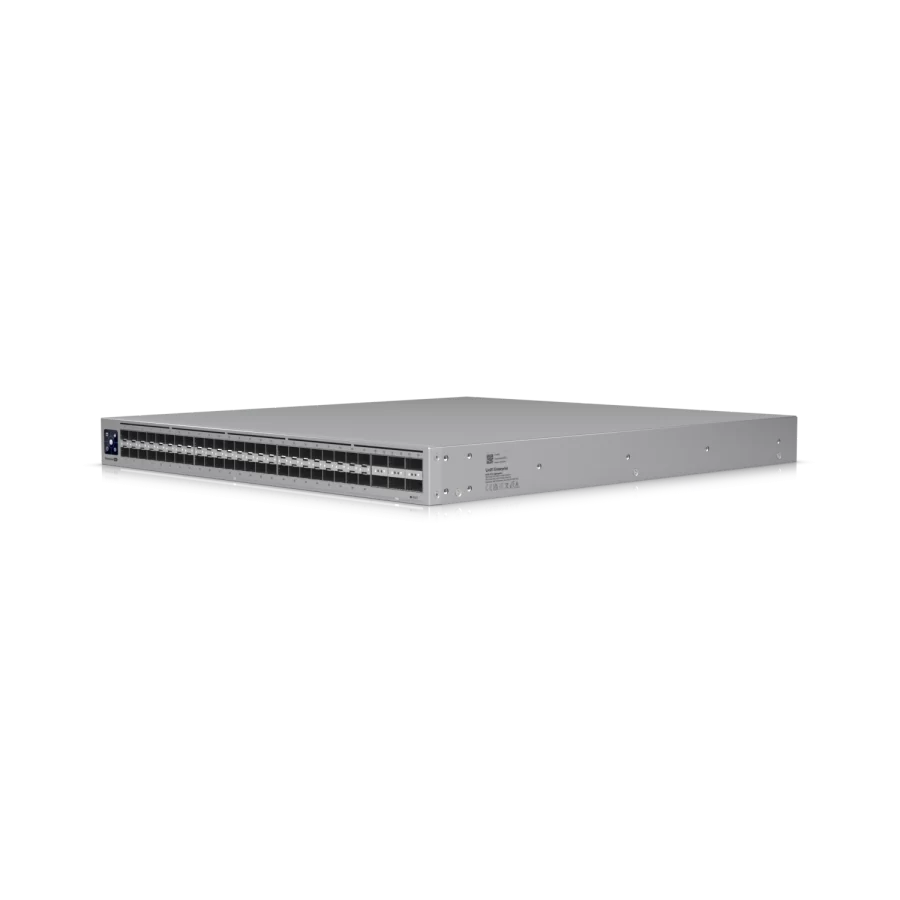

Switch Enterprise Campus Aggregation

Liên hệ

  •  Cổng 25G SFP28 và (6) Cổng 100G QSFP28
  • Hỗ trợ Tập hợp liên kết đa khung (MC-LAG)
  • Hỗ trợ chuyển đổi dự phòng tự động lớp 3 (VRRP)
  • Định tuyến động BGP
  • (2) module nguồn và (5) module quạt có thể thay thế nóng
Model ECS-Aggregation
Mechanical
Dimensions 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″)
Weight 9.9 kg (21.8 lb)
Enclosure material SGCC Steel
Slide rails support The rails support 482.6 mm (19″) four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
Hardware
Management interface Ethernet In-Band
Networking interface (6) 100/40G QSFP28 ports
(48) 25/10G SFP28 ports*
1 Gbps port speed is not supported.
Total Non-Blocking Throughput 1.8 Tbps
Switching Capacity 3.6 Tbps
Forwarding rate 2.3 Bpps
Power Method (2) Universal input, 100—240V AC
Power Supply (2) Hot-swappable AC/DC 550W power modules
Supported voltage range 100—240V AC
Supported voltage range 340W
ESD/EMP protection Air: ± 12kV, contact: ± 8kV
Services SMB Layer3 100G/25G Fiber Switch
LCM display (1) 1.3″ touchscreen
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Etherlighting™
SFP28/QSFP28 Locating
Speed/link
Native VLAN/network
Application Requirements
UniFi Network Version 8.5.6 and later
