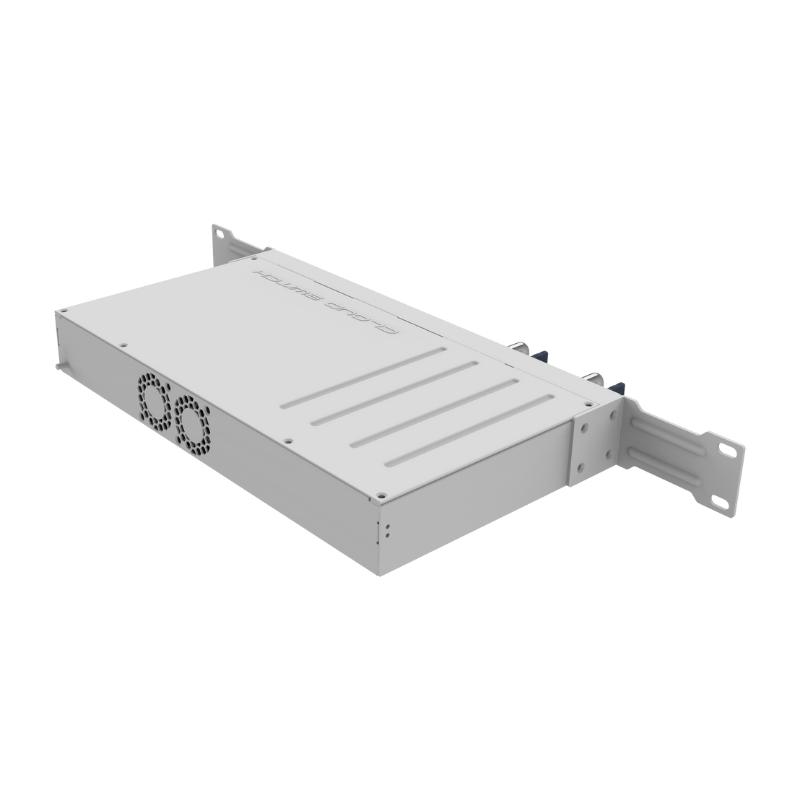

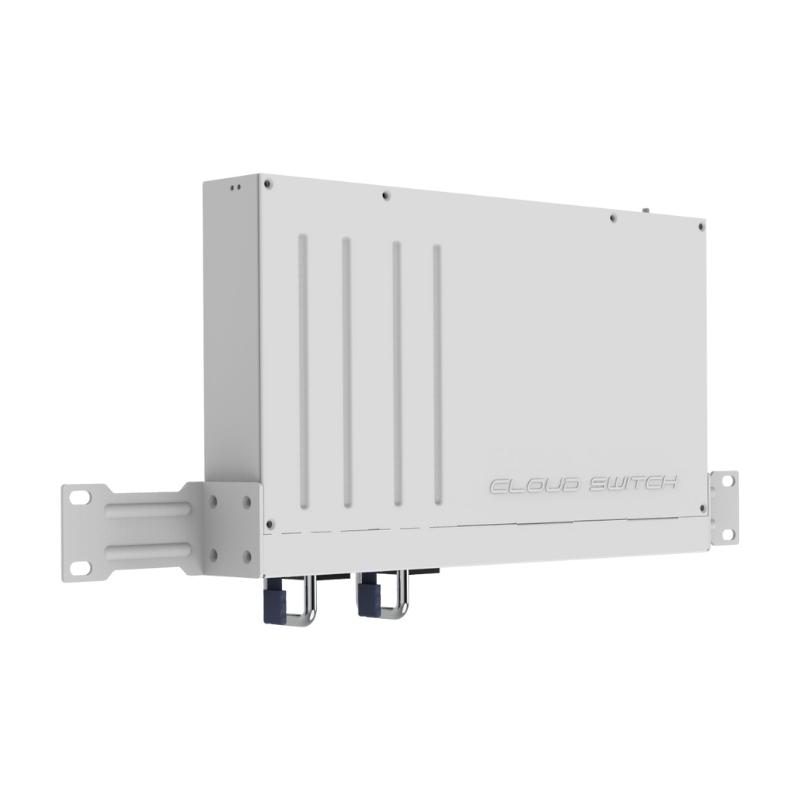

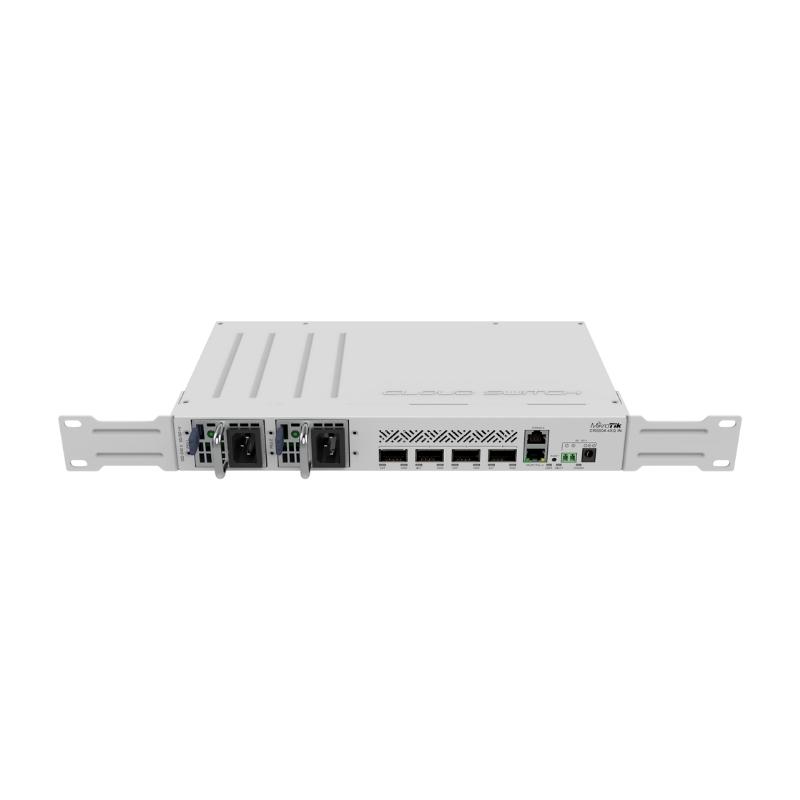

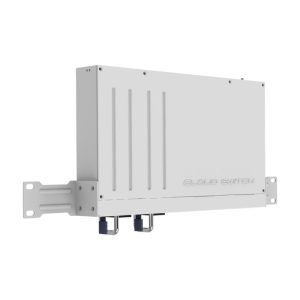

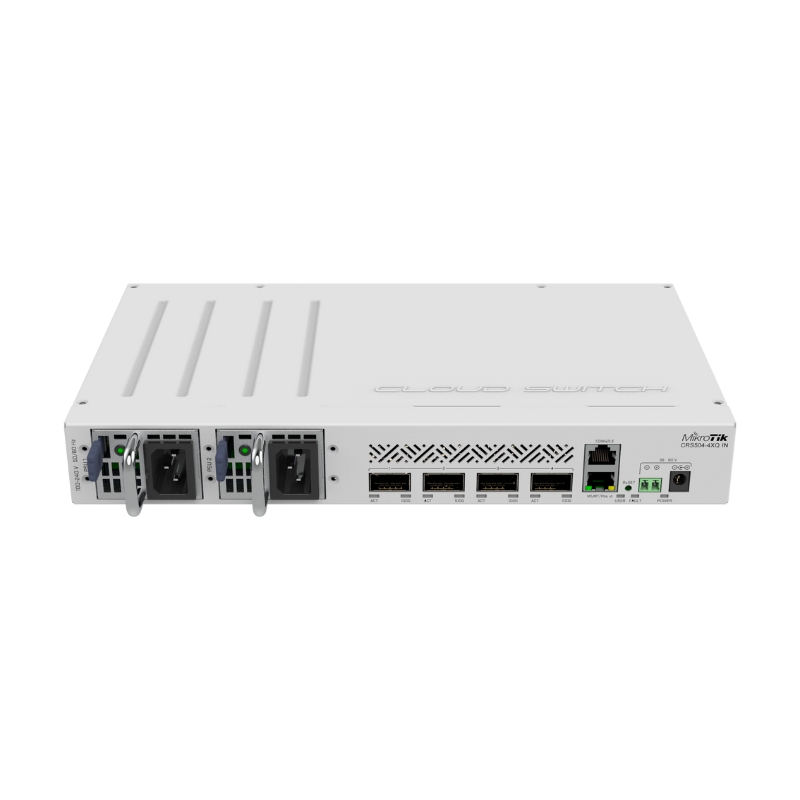

Switch MikroTik CRS504-4XQ-IN

Liên hệ

4x 100G QSFP28 ports | 1x Gigabit LAN port | Dual Hotswap PSUs | Multiple Powering Options: PoE-in, DC jack, 2-pin terminal | RouterOS (License level 5)

Hãng : Mikrotik

Xuất xứ : Latvia

Description

Product code	CRS504-4XQ-IN
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	98DX4310
Dimensions	320 x 185 x 44 mm
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	64MB

Storage size	16MB
Storage type	FLASH
MTBF	Approximately 200’000 hours at 25C

Tested ambient temperature	-40°C to 70°C
Number of AC inputs	2
AC input range	100-240
Number of DC inputs	3 (DC jack, 2-pin terminal, PoE-IN)
DC jack input Voltage	36-57 V
2-pin terminal input Voltage	36-57 V
Frequency (Hz)	47-63

Max power consumption	41 W
Max power consumption without attachments	25 W
Cooling type	2 fans
PoE in	802.3 bt
PoE in input Voltage	43-57 V
10/100 Ethernet ports	1
Number of 100G QSFP28 ports	4
Serial console port	RJ45
