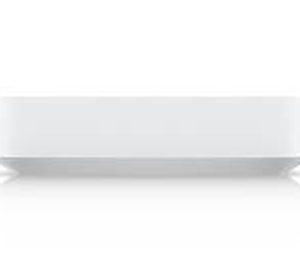

UniFi Cloud Gateway Ultra | UCG-Ultra

Mechanical

Dimensions

141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″)

Weight

520 g (1.1 lb)

Enclosure material

Polycarbonate

Hardware

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System memory

3 GB DDR4

On-board storage

16 GB eMMC

Management interface

Ethernet
Bluetooth

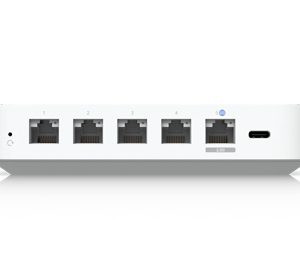

Networking interface

LAN: (4) GbE RJ45 ports

WAN: (1) 1/2.5 GbE RJ45 port

IDS/IPS throughput

1 Gbps

Power method

USB type C (5V/3A)

Supported voltage range

100–240V AC

Max. power consumption

6.2W

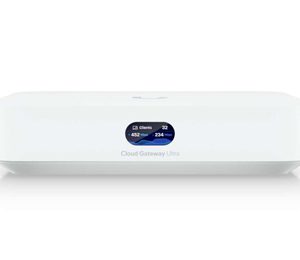

LCM display

0.96″ status display

Button

Factory reset

Operating temperature

-10 to 40° C (14 to 104° F)

Operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Gateway Features

Performance

Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting

Next-generation security

Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced networking

License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support

LEDs

Ethernet

Green: link/activity

Application Requirements

Mobile app

UniFi iOS™: Version 10.12.0 and later
UniFi Android™: Version 10.11.2 and later
