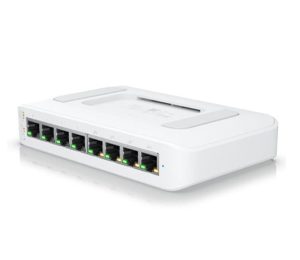

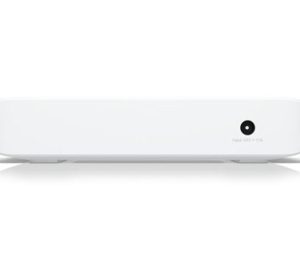

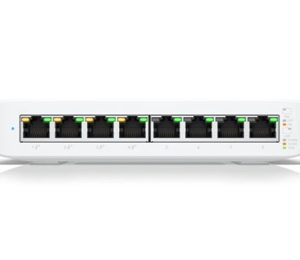

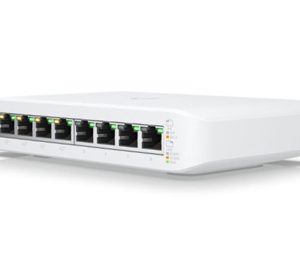

Thông số kỹ thuật về Thiết bị chuyển mạch Ubiquiti UniFi Switch Lite 8 PoE (USW-Lite-8-PoE)
| SKU | USW-Lite-8-POE |
| Mechanical | |
| Dimensions | 99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25″) |
| Weight | 450 g (15.87 oz) |
| Hardware | |
| Total Non-Blocking Line Rate | 8 Gbps |
| Max. Power Consumption | 8W |
| Power Method | 54VDC, 1.1A Power Adapter |
| Power Supply | External 54V/60W Power Adapter |
| Supported Voltage Range | DC 50V to 57V |
| Networking interfaces | (8) 10/100/1000 Mbps Ethernet RJ45 Ports |
| PoE Interfaces | (4) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Management Interface | Ethernet In-Band |
| Max. PoE+ Wattage per Port by PSE | 30W |
| Modes | SMB Layer 2 PoE Gigabit Ethernet Switch |
| Operating Temperature | -15 to 40° C (5 to 104° F) |
| Operating Humidity | 10 – 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System |
(1) Power, Blue/White
|
| Flashing White: Bootup in Progress | |
| Flashing Blue: Firmware Upgrading | |
| Steady White: Factory Defaults, Awaiting Adoption | |
| Steady Blue: Device is Adopted | |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| PoE | Amber: IEEE 802.3af/at |
