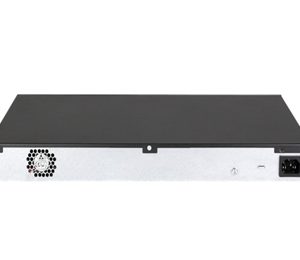

Switch HPE FlexNetwork 5140 JL824A
| Part Number |
: JL824A
|
| List Price |
: $Liên hệ ngay nhận giá tốt
|
| Giá bán |
: Giá rẻ nhất thị trường
|
| Bảo hành |
: Trọn đời
|
| Made In |
: Liên hệ
|
| Stock |
:Sẵn hàng
|
Switch HPE FlexNetwork 5140 JL824A có thiết kế với 48 cổng 1GE hỗ trợ PoE+ (tối đa 30W mỗi cổng) và 4 cổng 10G SFP+ uplink, có thể đáp ứng tối đa mọi nhu cầu truy cập internet tốc độ cao cho mạng doanh nghiệp.
Thông số kỹ thuật switch HPE JL824A
| Datasheet JL824A | |
| Specifications | |
| I/O ports and slots | 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ fixed 10G SFP+ ports |
| Additional ports and slots | 1 RJ-45 serial console port |
| Physical characteristics | 17.32 in. (w) x 14.17 in. (d) x 1.72 in. (h) (44 cm x 36 cm x 4.36 cm) (1U height) 17.64 lb (8 kg) |
| Memory and processor | 512 MB SDRAM, 256 MB flash |
| Mounting and enclosure | Mounts in an EIA standard 19 inch telco rack or equipment cabinet (hardware included) |
| Performance | 1000 Mb Latency < 5 µs 10 Gbps Latency < 3 µs Througut 130.9 Mpps Switching capacity: 176 Gbps Routing table size 512 entries (IPv4), 256 entries (IPv6) MAC address table size 16384 entries IPv6 Ready Certified |
| Environment | Operating temperature: 23°F to 113°F (–5°C to 45°C) Operating relative humidity: 10% to 90%, noncondensing Nonoperating/Storage temperature: –40°F to 158°F (–40°C to 70°C) Nonoperating/Storage relative humidity: 5% to 95%, noncondensing Acoustic: Low-speed fan: 50.6 dB, High-speed fan: 54.6 dB; ISO 7779 |
| Electrical characteristics | Frequency: 50/60 Hz Voltage: 100 – 240 VAC DC voltage: –54 VDC to –57 VDC Current: 10A Maximum power rating: 478W Idle power: 47W PoE power: 370W PoE+ |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; RoHS Compliance |
| Immunity | Generic: EN 55024 ESD: EN 300 386 |
| Emissions | FCC Part 15 Subpart B Class A; ICES-003 Class A; VCCI-CISPR 32 Class A; EN 55032 Class A; AS/NZS CISPR32 Class A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993 |
| Management | IMC; Smart MC, command-line interface; web browser; SNMP manager |
